Oil Pump Drive Shaft: Service and Repair

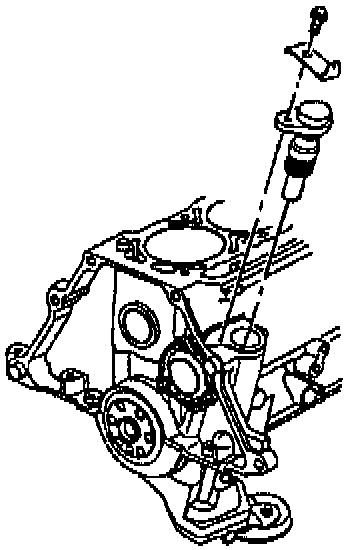

REMOVAL PROCEDURE





1. Remove the intake manifold.
2. Remove the oil pump drive bolt.
3. Use a lifting and turning motion to remove the oil pump drive.
4. Inspect the oil pump drive shaft for wear or damage.

INSTALLATION PROCEDURE





IMPORTANT: Do not crack the oil pump drive shaft retainer.

1. Install the oil pump drive by twisting the oil pump drive into place.

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the oil pump drive bolt.
^ Tighten the bolt to 25 Nm (18 ft. lbs.).

3. Install the intake manifold.
