Rocker Arm Assembly: Service and Repair

REMOVAL PROCEDURE





1. Remove the valve rocker arm cover.

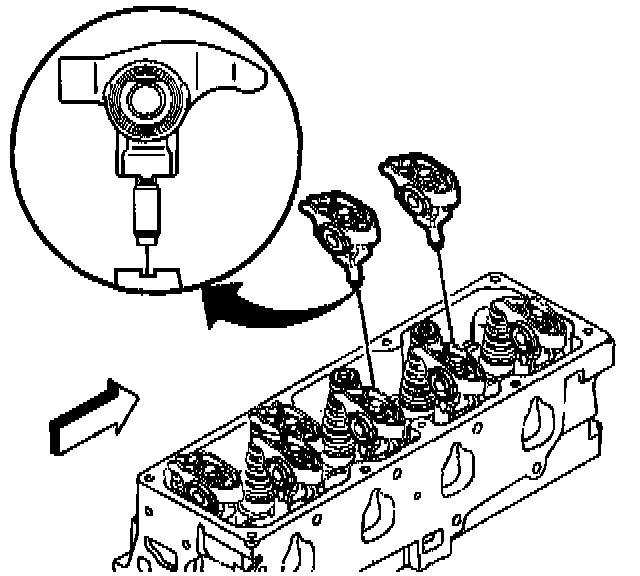

2. Remove the valve rocker arm and the valve pushrod.
3. Clean and inspect all parts. .

INSTALLATION PROCEDURE

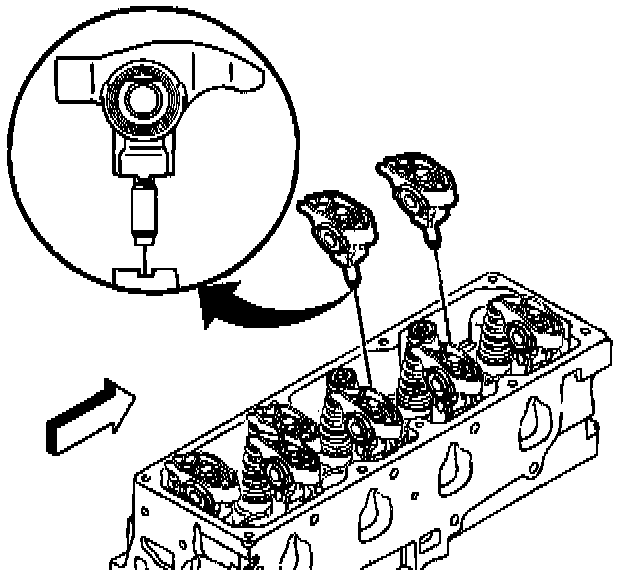

1. Install the valve rocker arm and the valve pushrod.
2. Install the valve rocker arm cover.
