Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
Window Lockout Switch
Window Lockout Switch

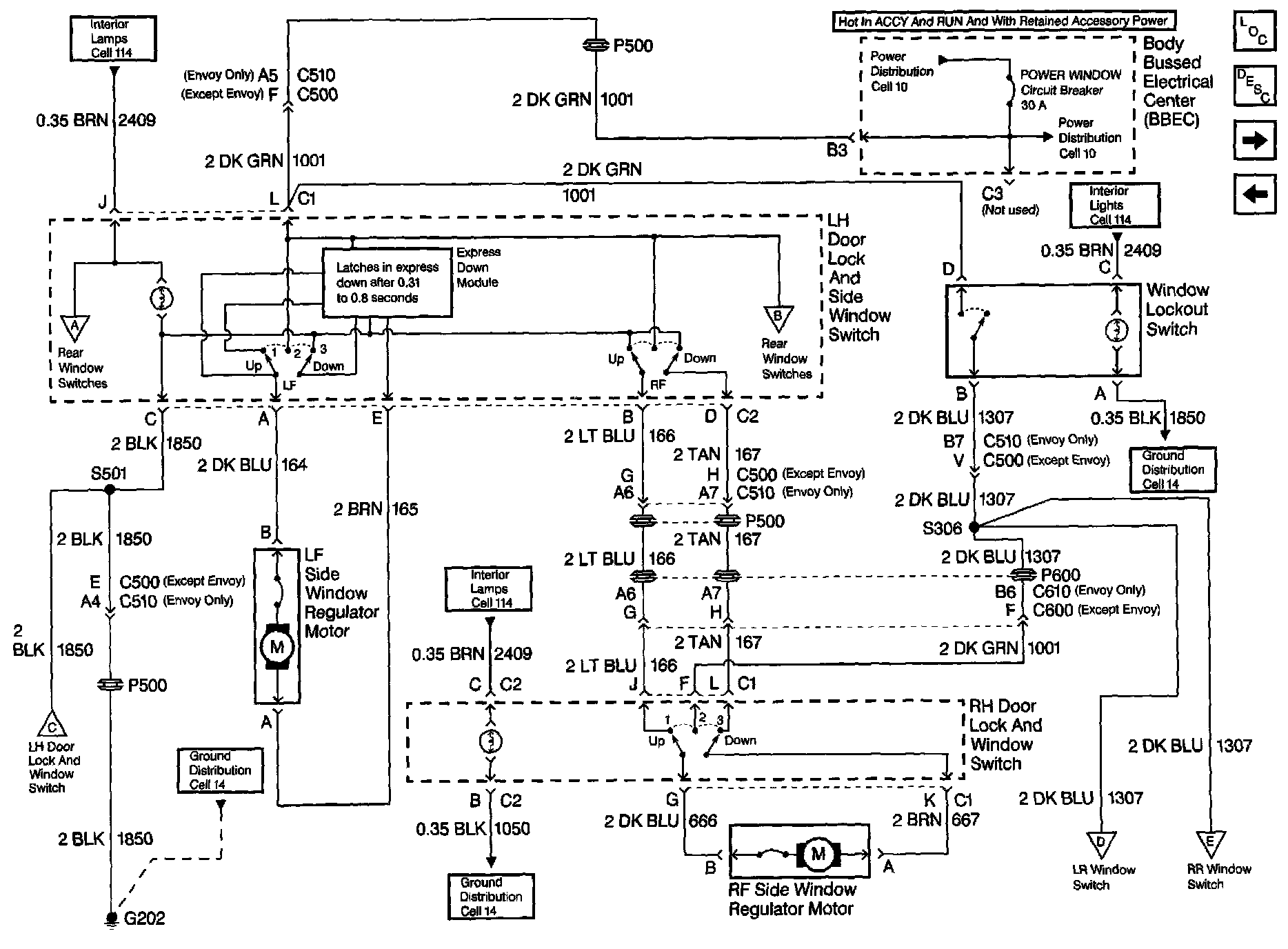

Power Windows Schematics: Window Lockout Switch:
