Trunk / Liftgate
>>
Rear Window Release
Rear Window Release

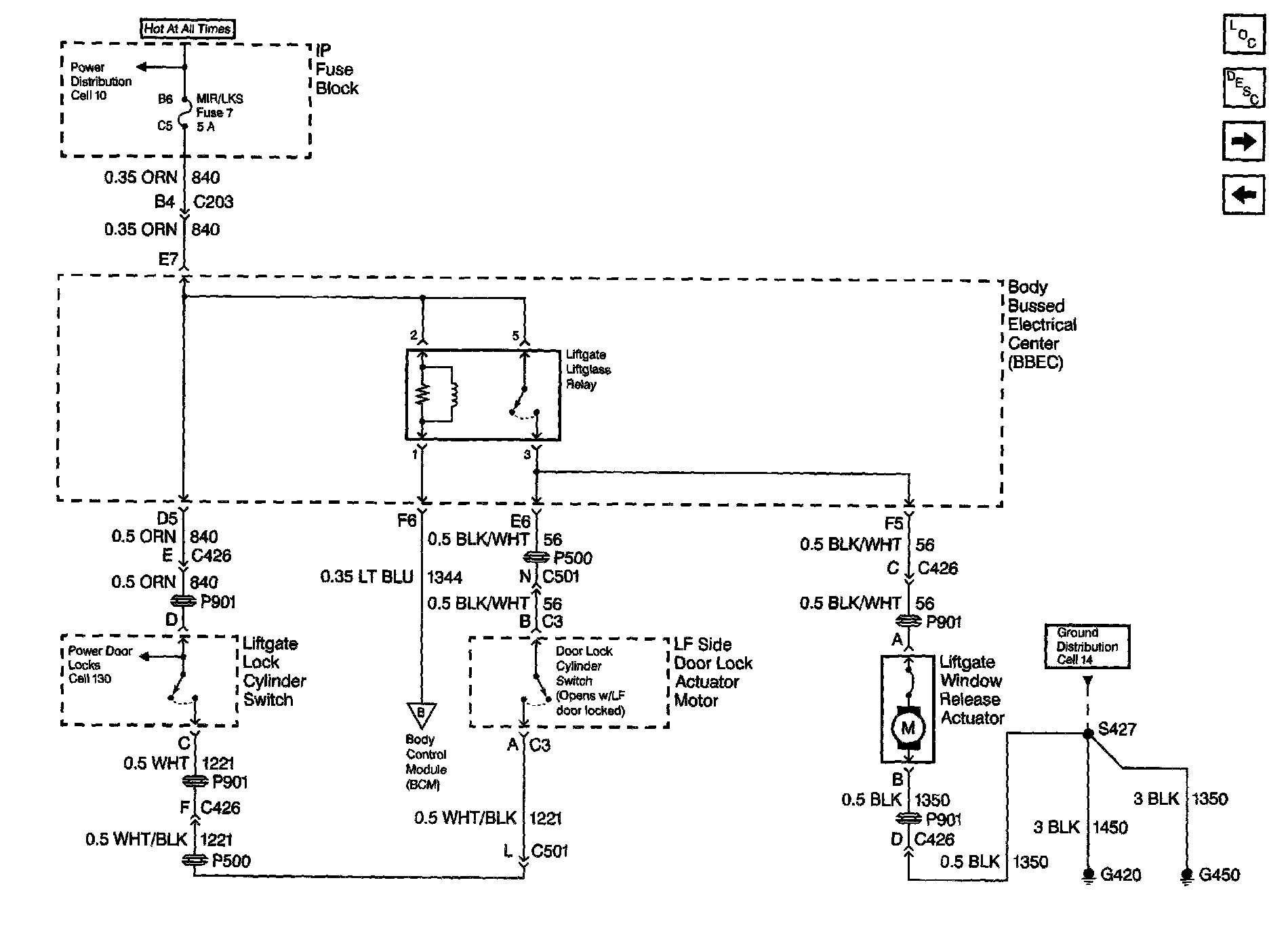

Release System Schematics: Liftgate Window Release Actuator:
