Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
>>

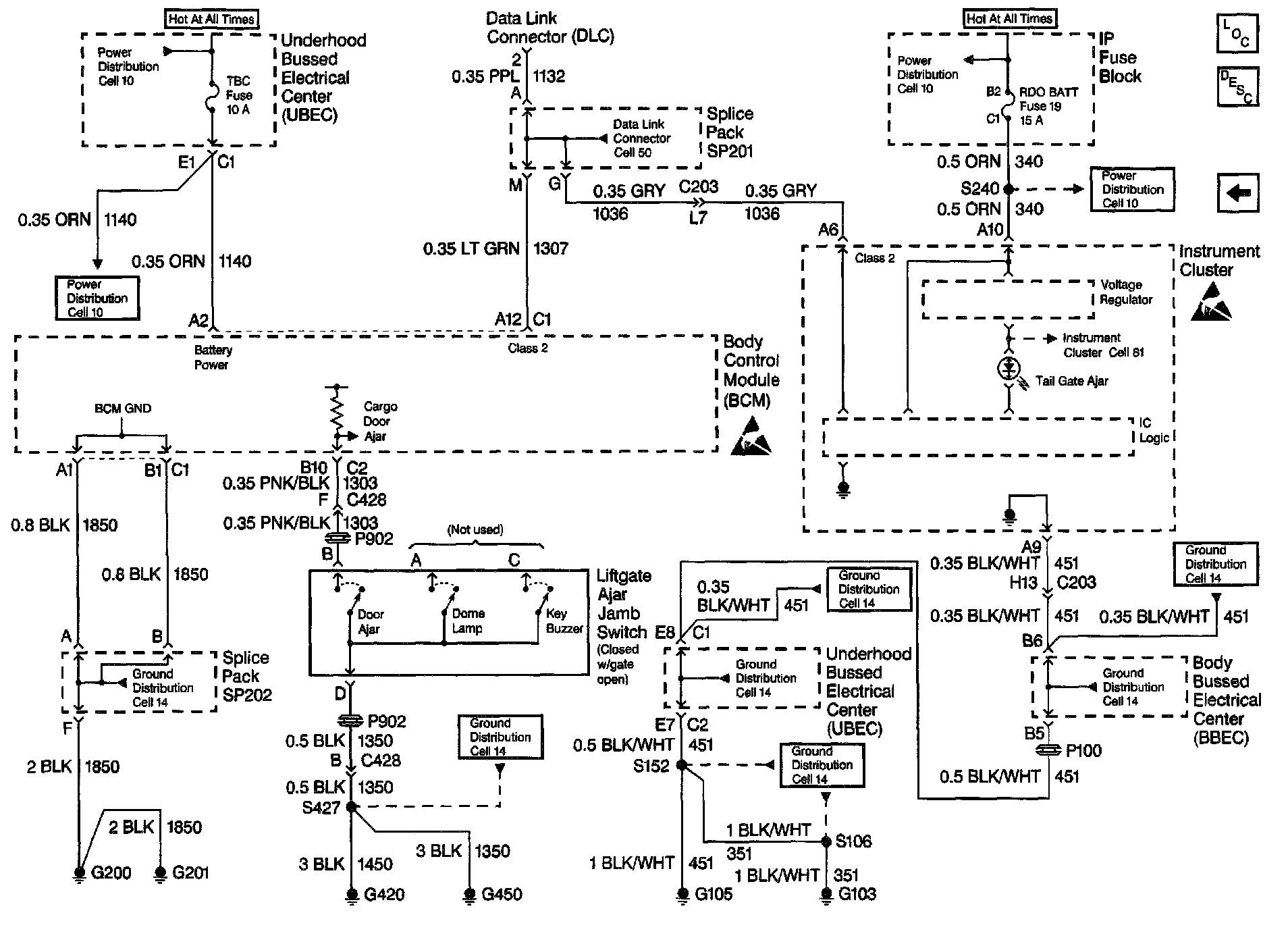

BCM/ Liftgate Ajar Switch
BCM/ Liftgate Ajar Switch
Release System Schematics: BCM:
