Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>

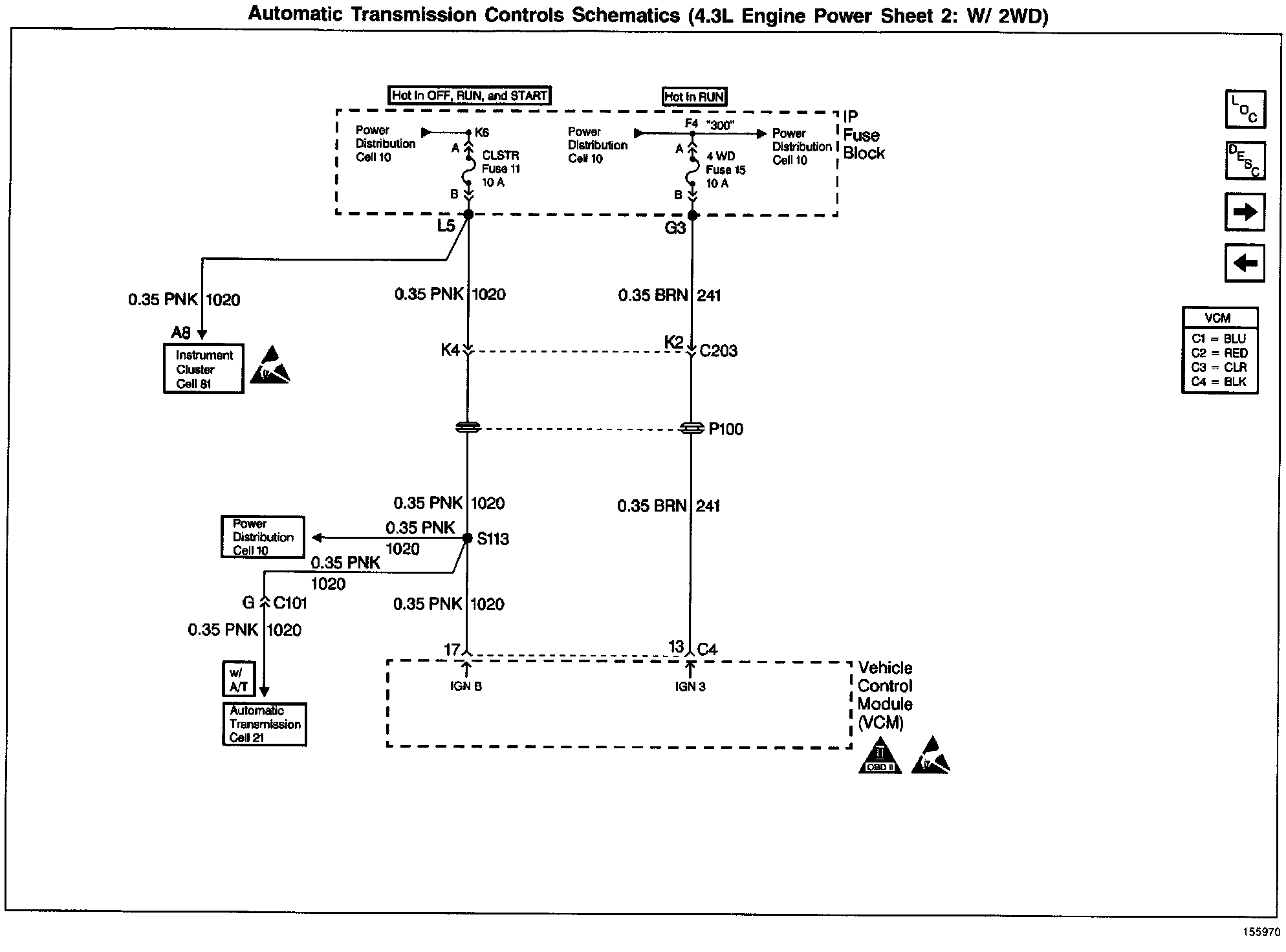

Power Sheet 2: W/ 2WD
Power Sheet 2: W/ 2WD
Wiring Diagram:
