Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>
Rear Seat Audio Module
Rear Seat Audio Module

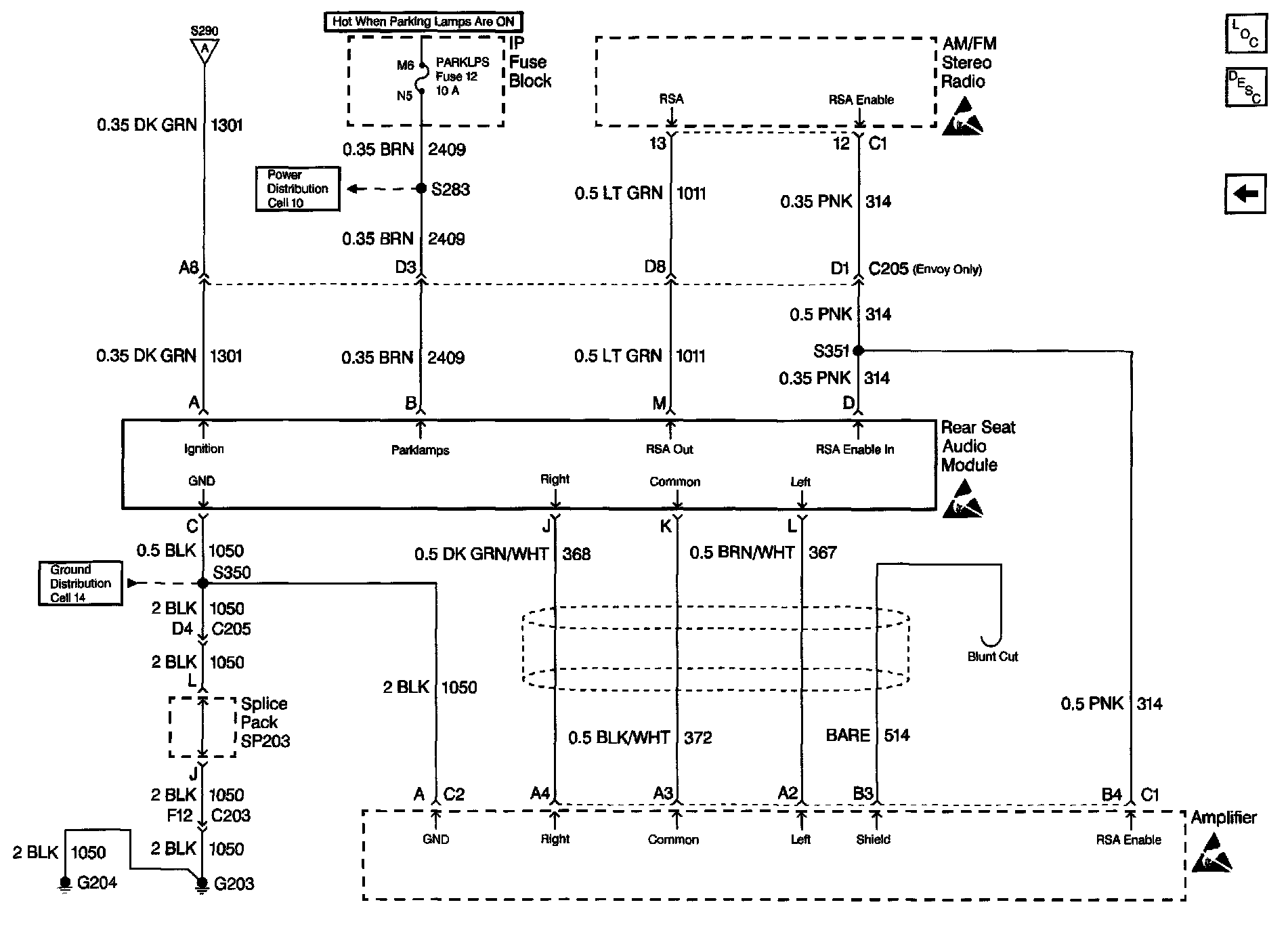

Radio/Audio Schematics: Rear Seat Audio Module:
