Home >> Chevy Truck >> 1998 >> S10/T10 P/U 2WD L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Interior Lighting Module >> BCM

BCM

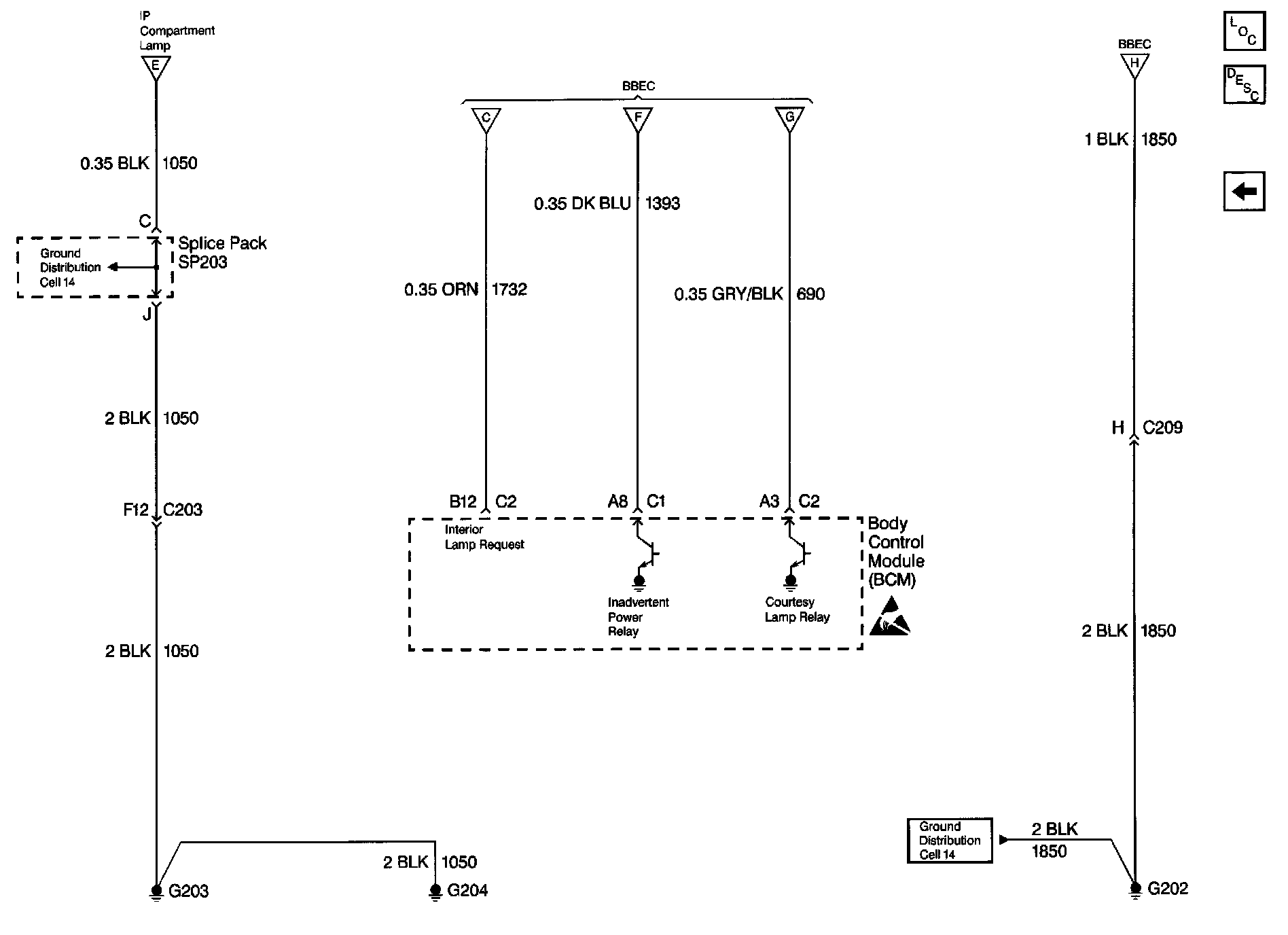

Interior Lights Schematics: BCM:
