Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Driver Information System
>>
W/Trip Computer - Inputs
W/Trip Computer - Inputs

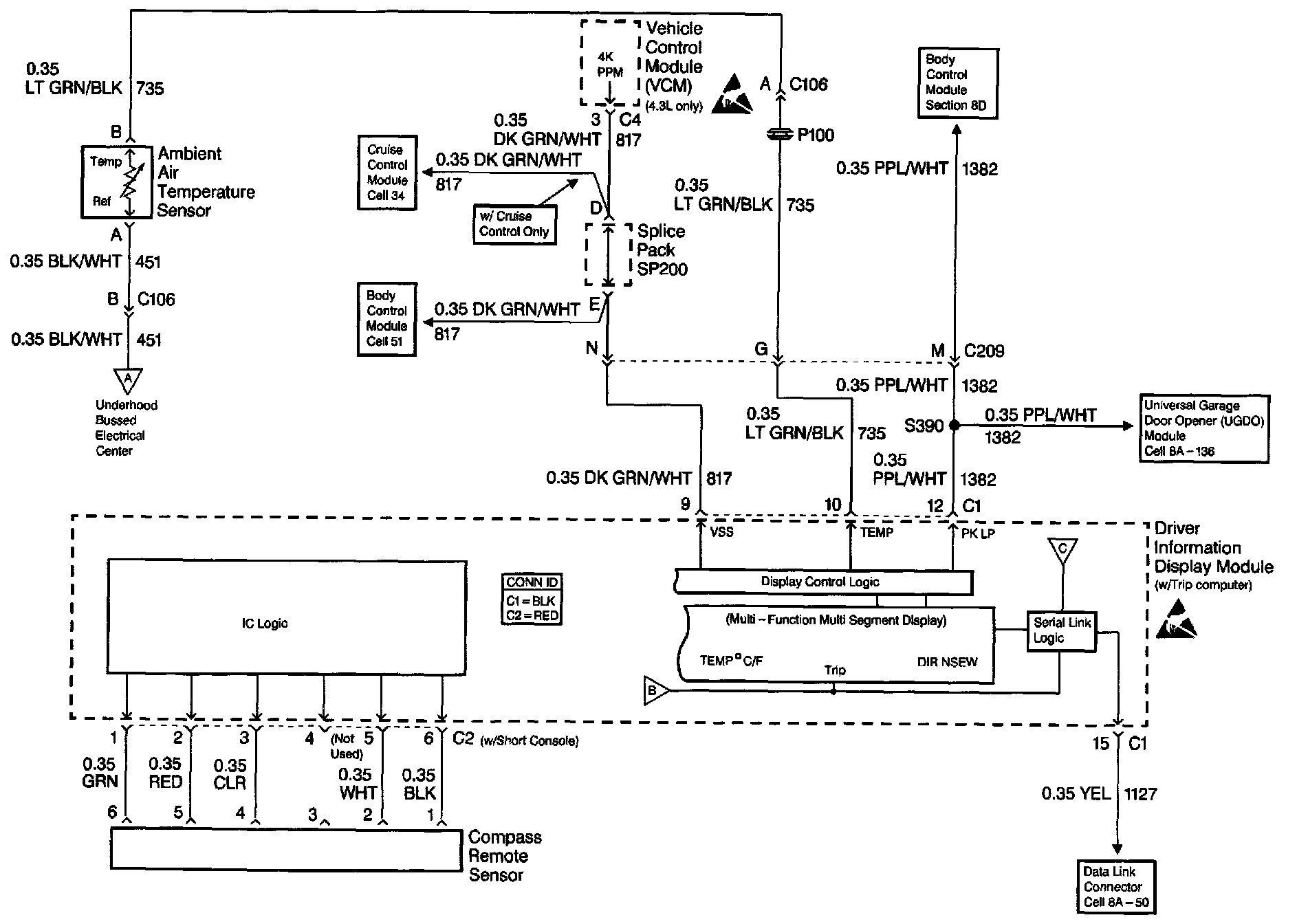

Driver Information System Schematics: W/Trip Computer - Inputs:
