Home
>>
Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
A/C System - Automatic
>>
Compressor Control
>>

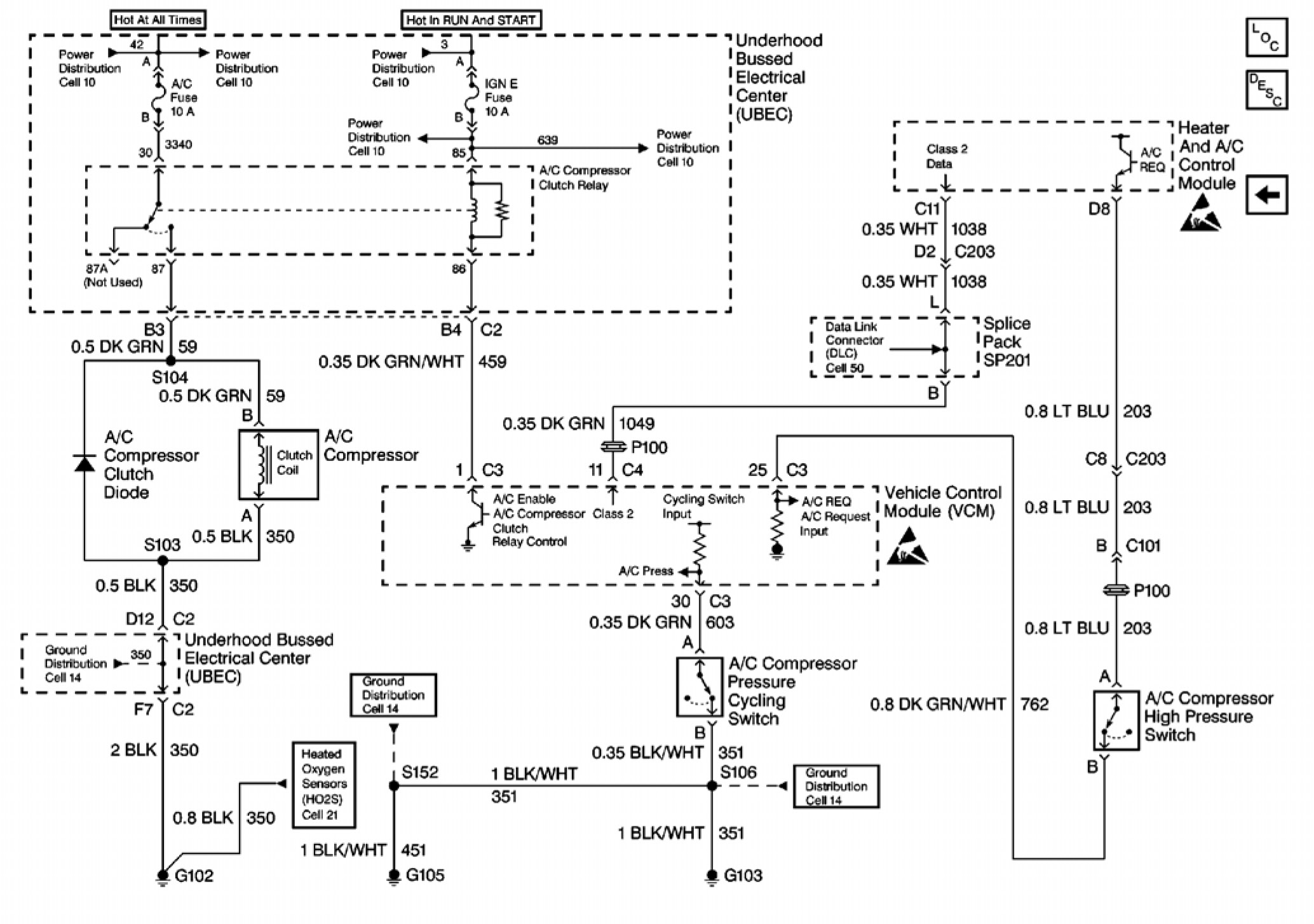

Compressor, Pressure Cycling & High Pressure Switches
Compressor, Pressure Cycling & High Pressure Switches
