Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
A/C System - Automatic
>>
Air Delivery
>>

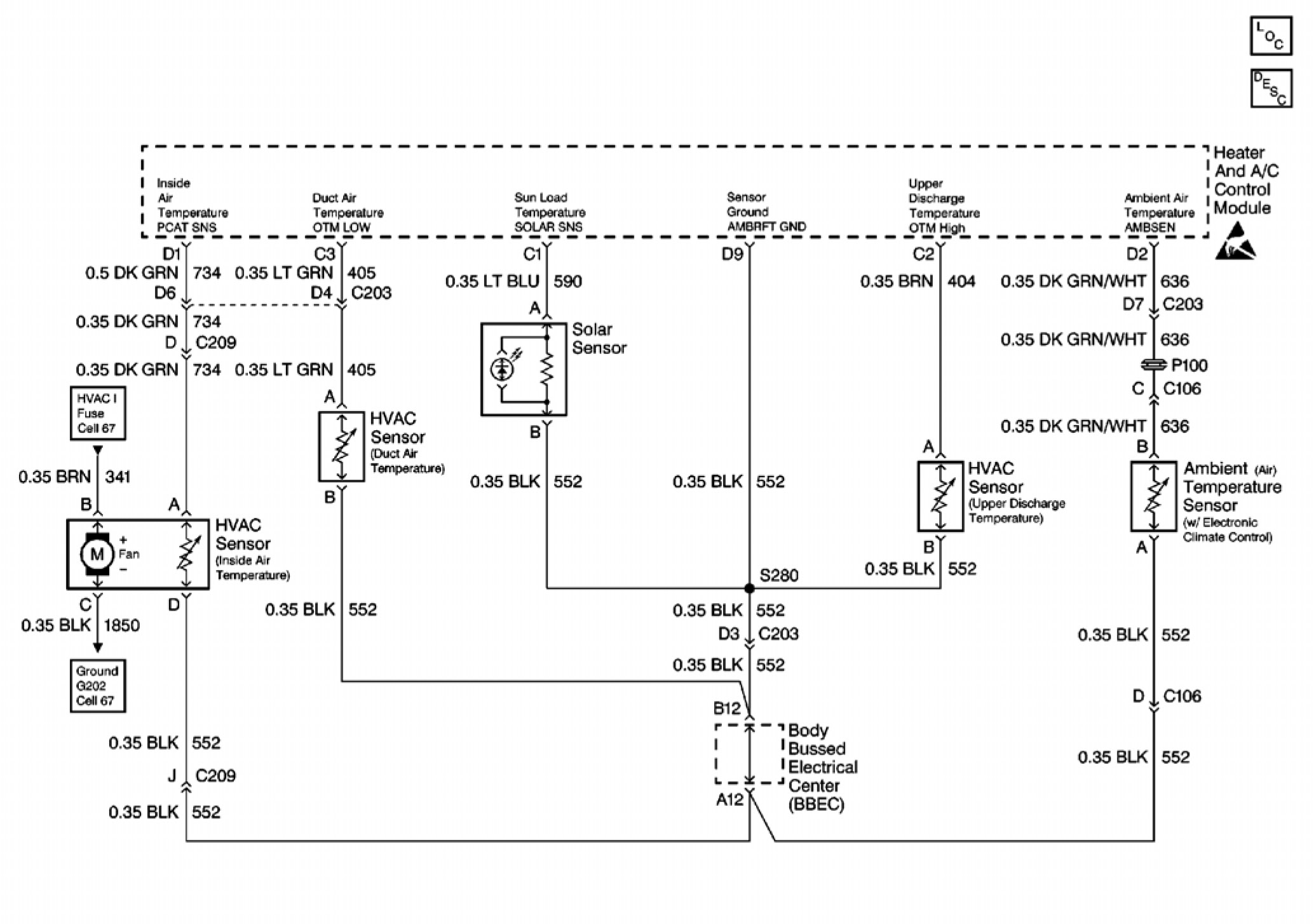

HVAC Sensor, Solar Sensor, and Ambient Air Temperature Sensor
HVAC Sensor, Solar Sensor, and Ambient Air Temperature Sensor
