Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
System Diagram
>>
PCM and VCM
PCM and VCM

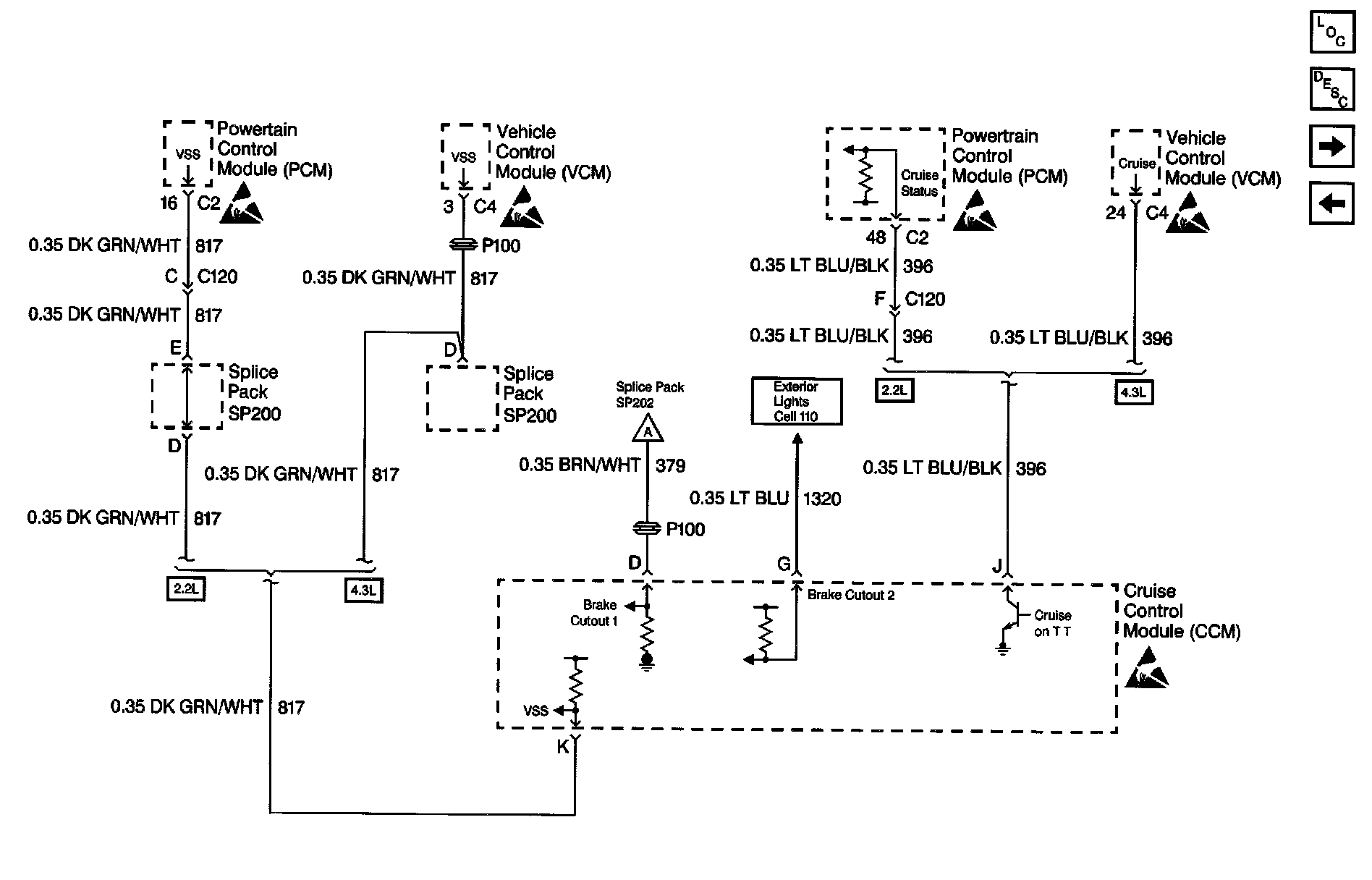

Cruise Control Schematics: PCM And VCM:
