Cellular Phone
>>
Vehicle Interface Unit (Viu)
Vehicle Interface Unit (Viu)

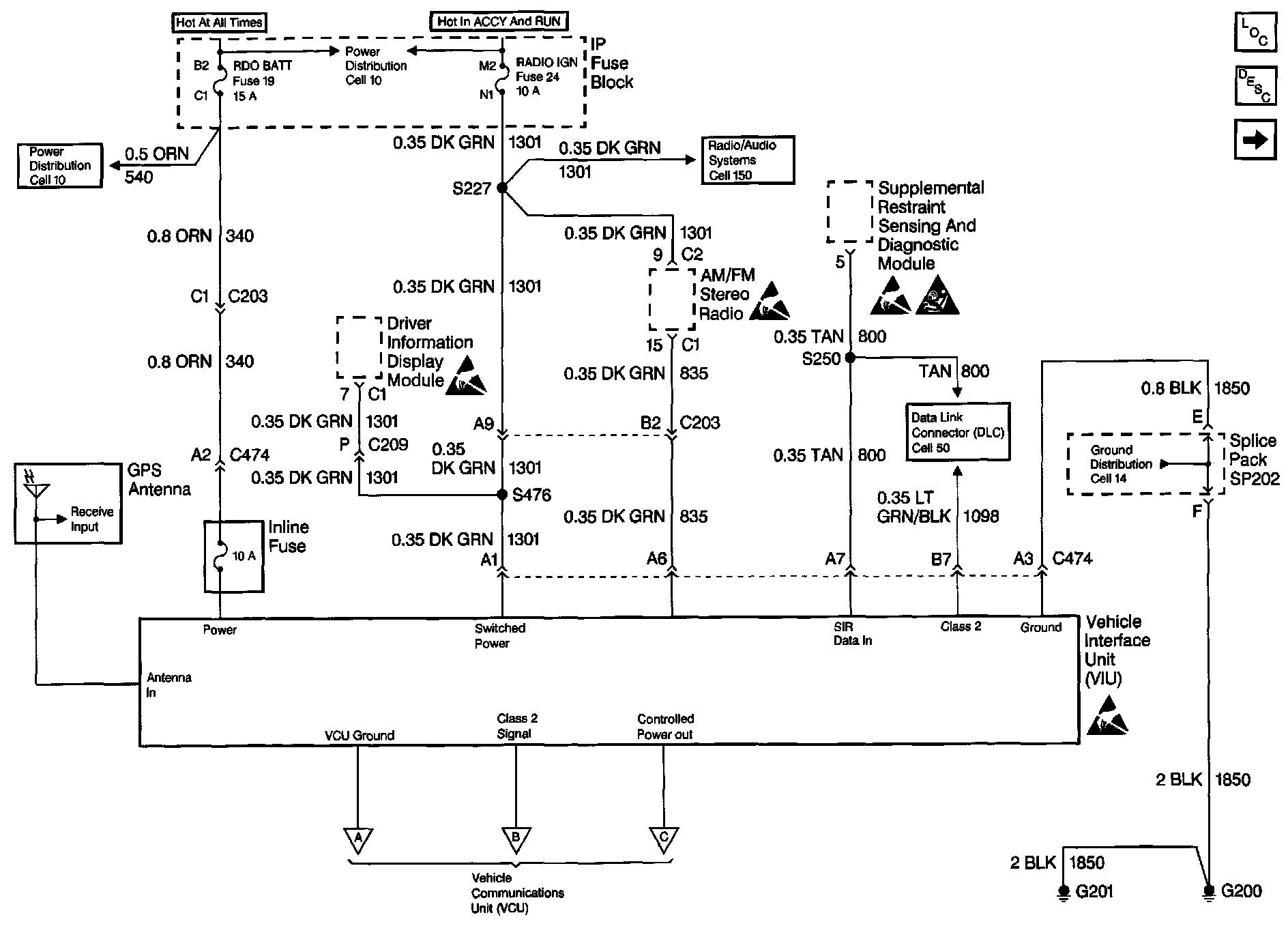

On-Star Schematics: Vehicle Interface Unit (VIU):
