Home >> Chevy Truck >> 1998 >> S10/T10 P/U 2WD L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor >> Lumbar Motor Connector >> LH

LH

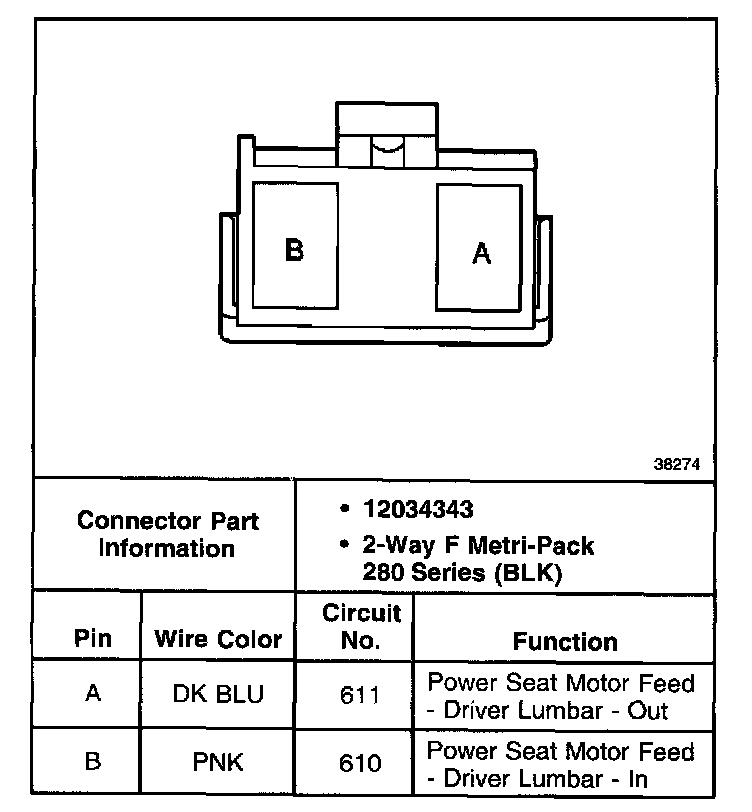

Lumbar Motor, LH Connector:
