Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Actuator
>>
Left Front Door Lock Actuator
Left Front Door Lock Actuator

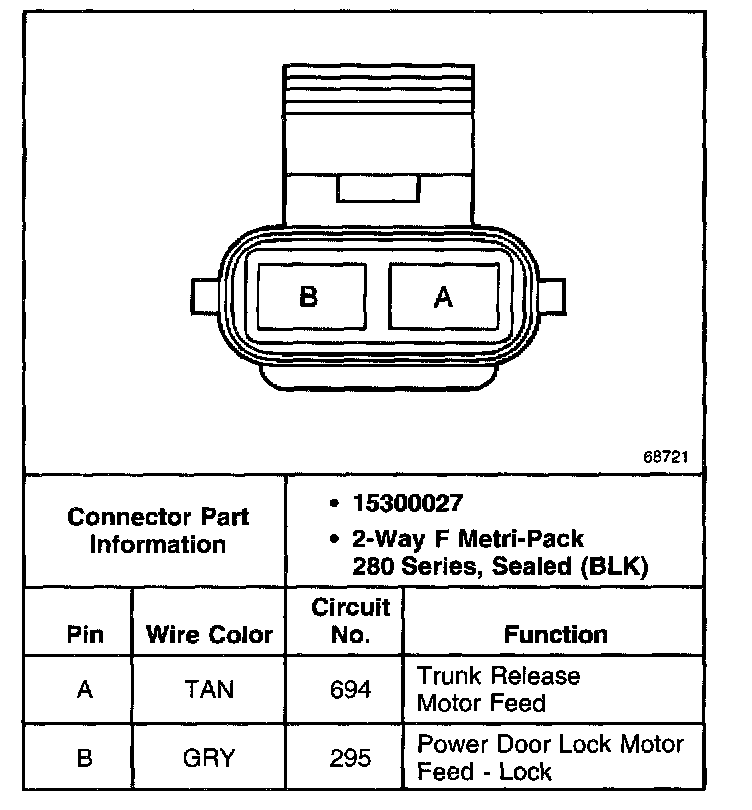

Door Lock Actuator Motor, LH Connector:
