Underhood Bussed Electrical Center (UBEC)
>>
C3
C3

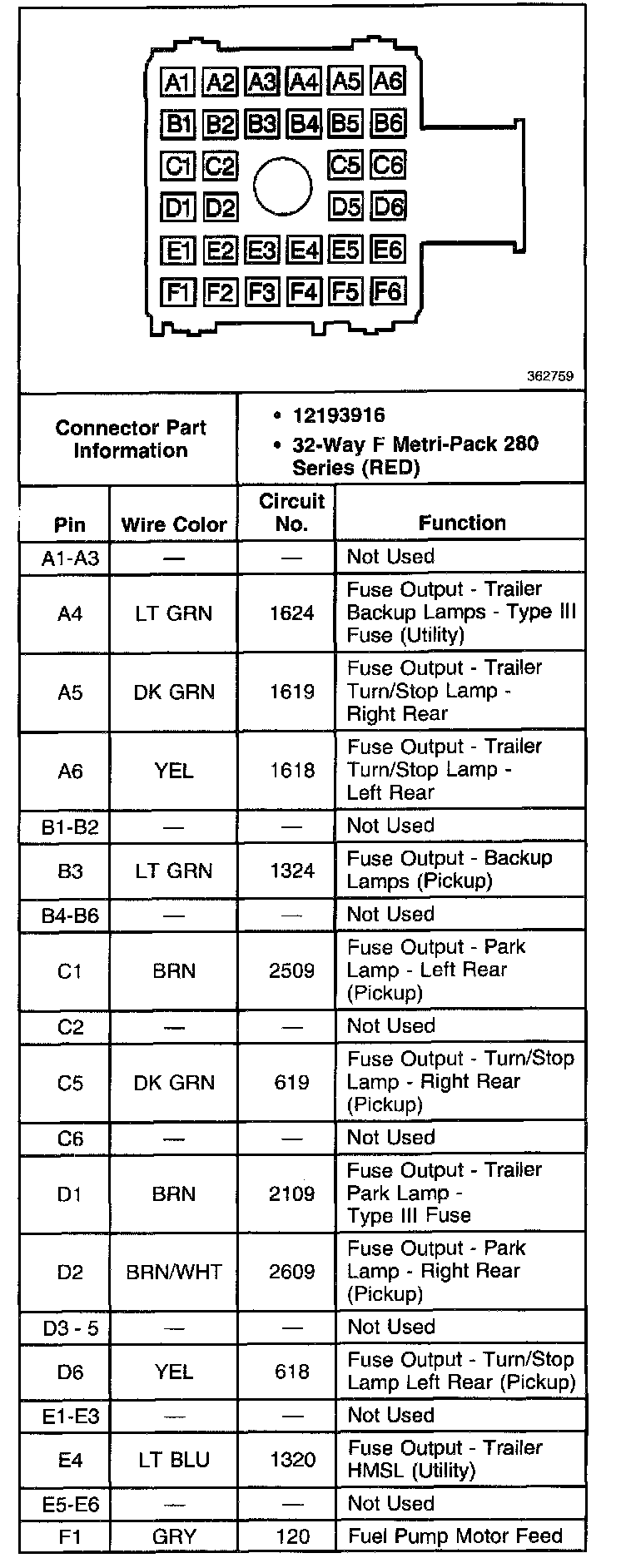

Underhood Bussed Electrical Center Connector: C3 (Part 1 Of 2):

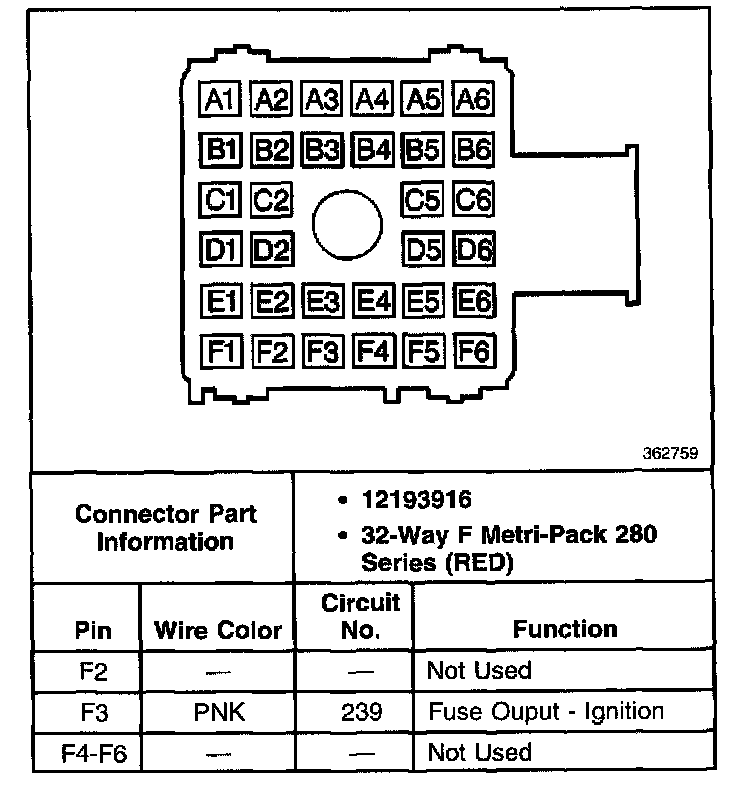

Underhood Bussed Electrical Center Connector: C3 (Part 2 Of 2):
