Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C200-C299
>>
C204
C204

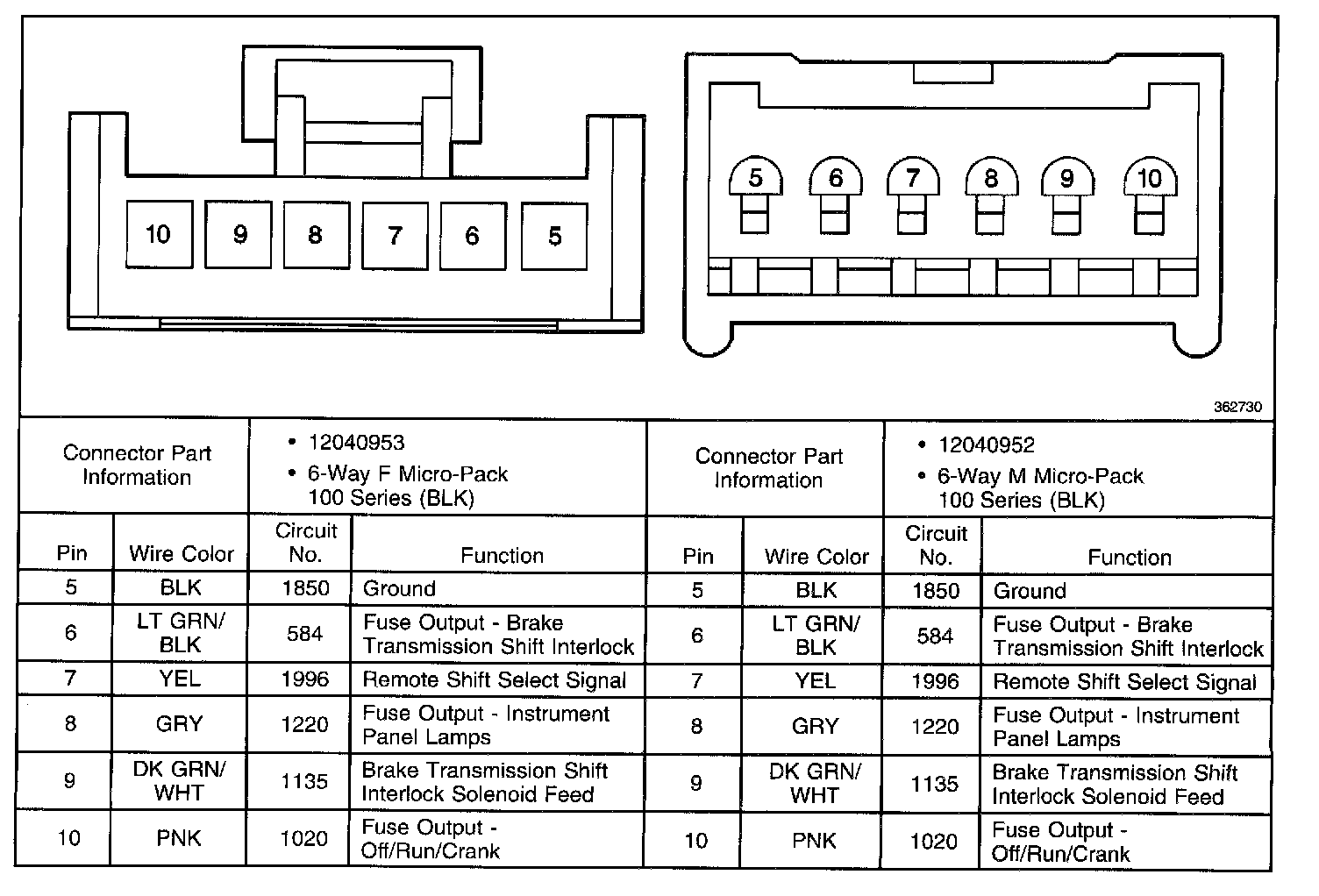

C204 (Body Harness To Floor Shifter Harness (Utility):
