Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C100-C199
>>
C117
C117

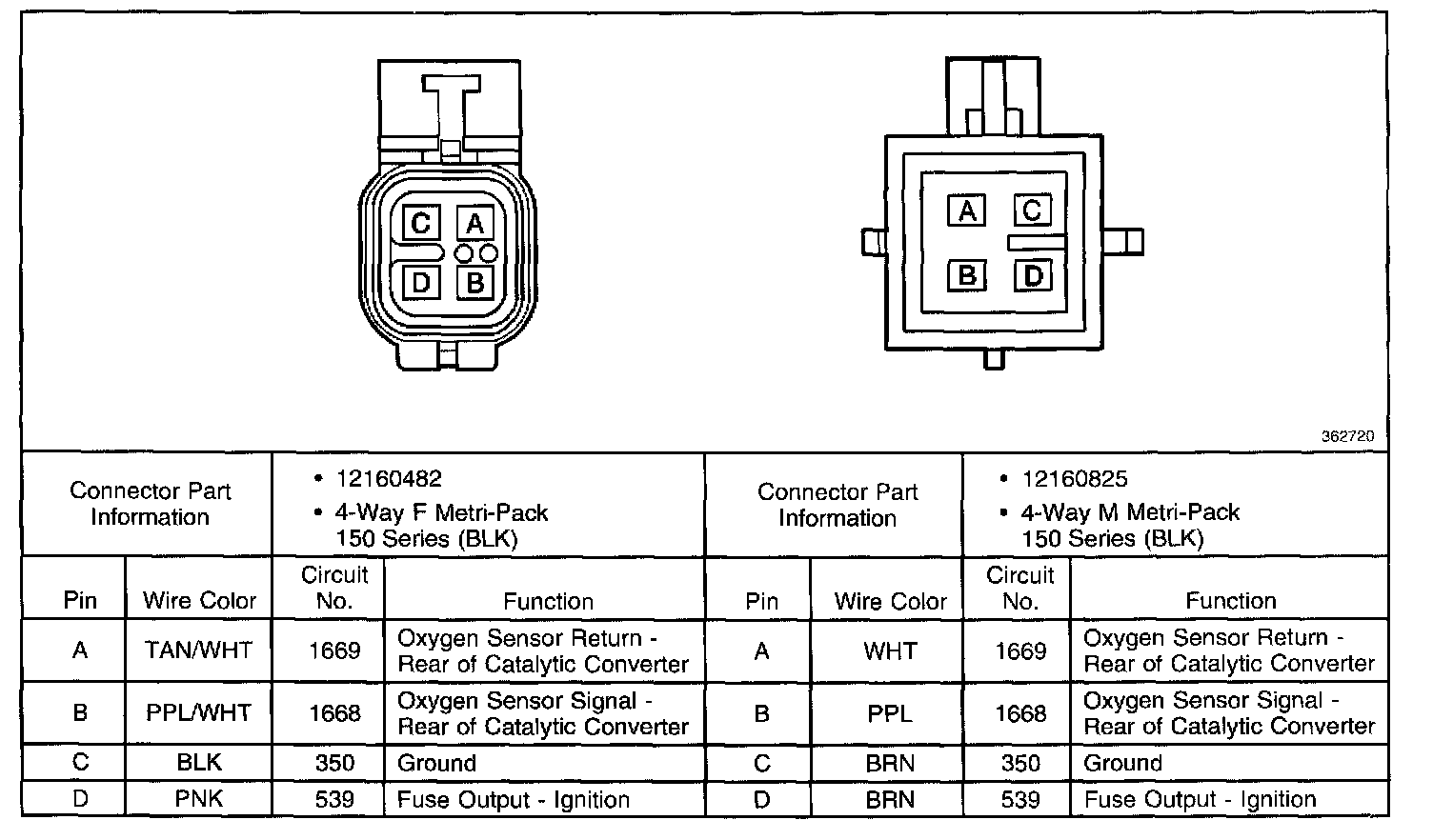

C117 (Engine Harness To Oxygen Sensor, Rear):
