Parking Brake Lever: Service and Repair

REMOVAL PROCEDURE





1. Release the park brake.
2. Remove the left I/P sound insulator. Refer to Knee Bolster Replacement.
3. Loosen the front cable at the equalizer.

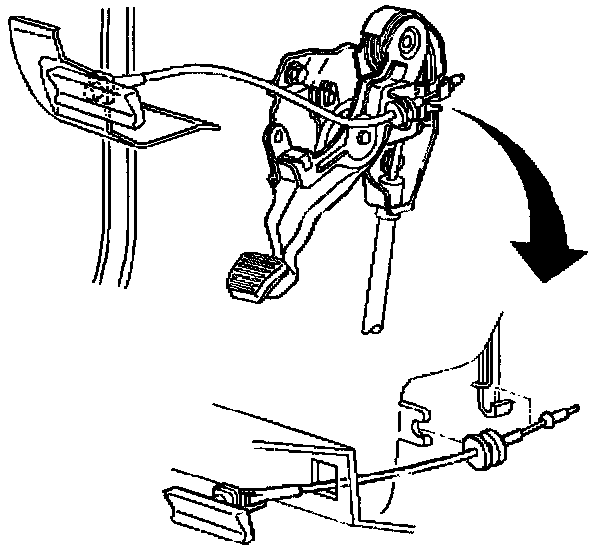

4. Remove the brake release handle.





5. Remove the lever assembly.

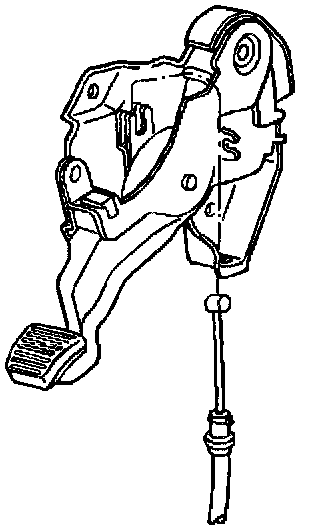

6. Disconnect the cable from the lever.





7. Press in on the retaining fingers.
8. Remove the retainer from the brake lever bracket. Press in on the retaining fingers.


INSTALLATION PROCEDURE

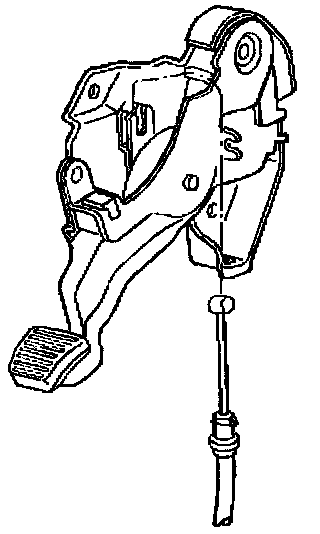

1. Install the front brake cable to the brake lever assembly.





2. Install the front brake cable retainer on the brake lever bracket.

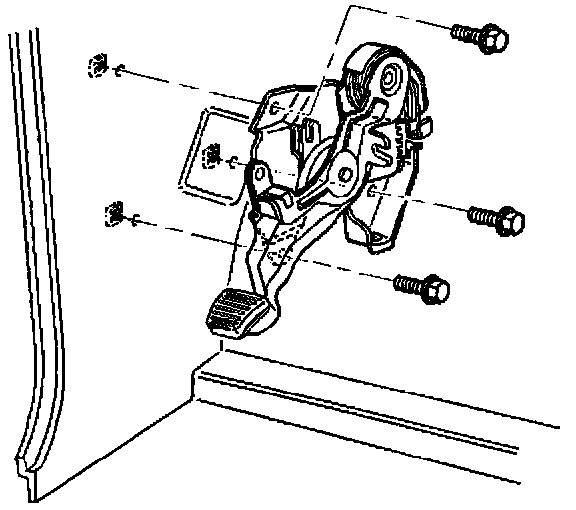

3. Install the brake lever assembly.

NOTICE: Refer to Fastener Notice in Service Precautions.

4. Install the bolts.
^ Tighten the bolts to 25 Nm (18 ft. lbs.).





5. Install the brake release handle.
6. Install the left side sound insulator. Refer to Knee Bolster Replacement.
7. Adjust the park brake cable. Refer to Park Brake Cable Service/Adjustment (Rear Cable Adjustment).
