Park Brake Cable Replacement (Front Cables)

REMOVAL PROCEDURE

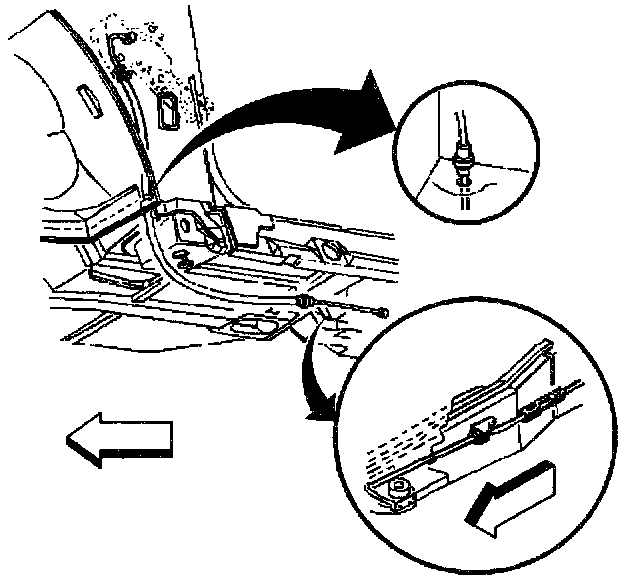

1. Raise the vehicle and support the vehicle with safety stands.

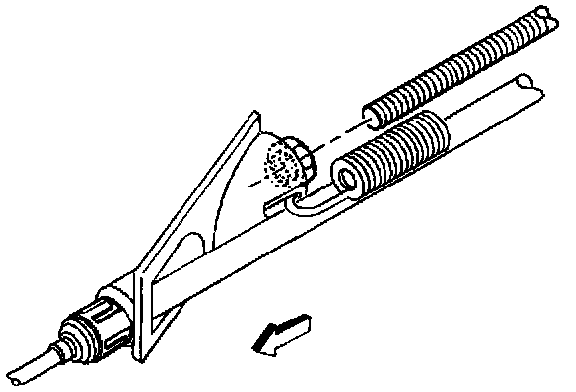

2. Disconnect the right rear cable at the equalizer.

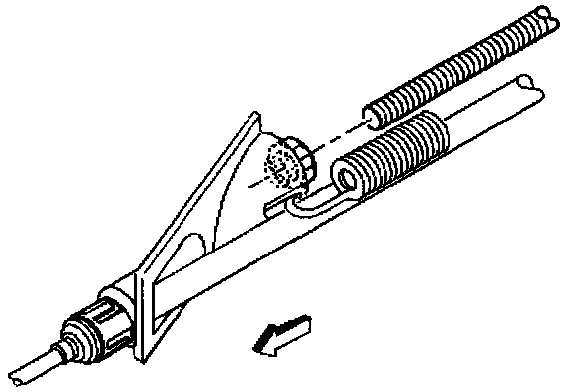

3. Remove the retainer.
4. Disconnect the left side sound insulator panel. Refer to Instrument Panel Sound Insulator Replacement.





5. Remove the retainer and the grommet.

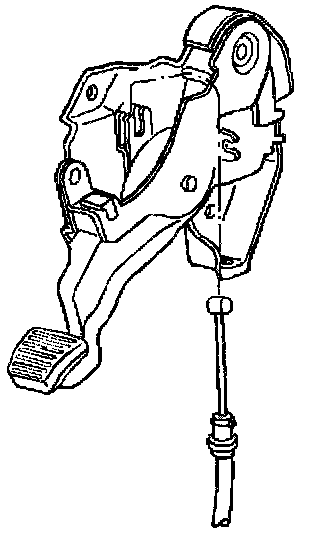

6. Disconnect the cable from the lever.

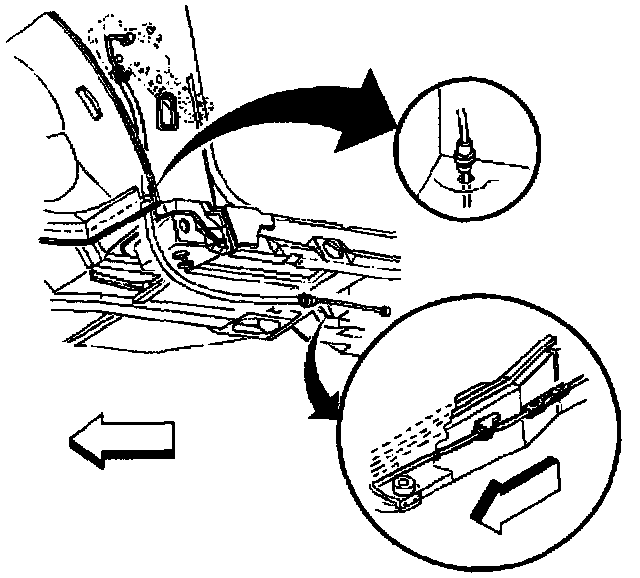

7. Disconnect the front cable.


INSTALLATION PROCEDURE

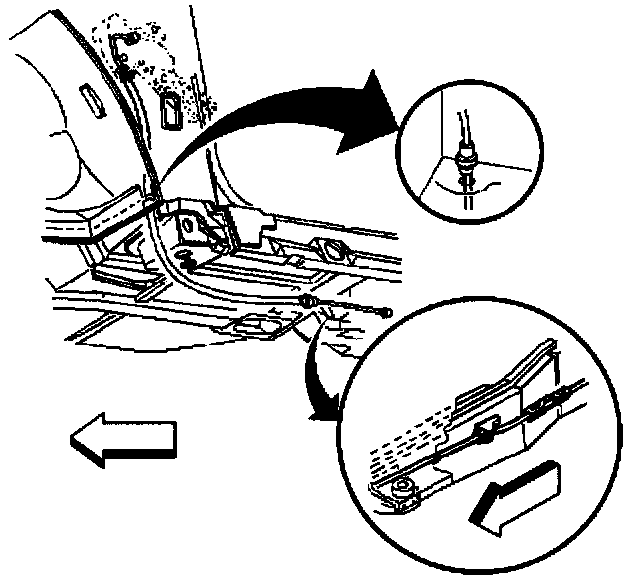

1. Install the front cable.





2. Connect the retainer and the grommet. All retaining fingers must be completely through the hole.

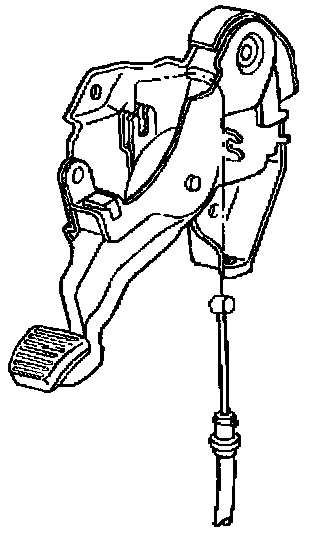

3. Connect the cable to the lever.
4. Install the left side sound insulator panel. Refer to Instrument Panel Sound Insulator Replacement.





5. Install the retainer.





6. Connect the right rear cable to the equalizer and to the nut.
7. Adjust the park brake. Refer to Park Brake Cable Service/Adjustment (Rear Cable Adjustment).
8. Lower the vehicle
