Tube Adapter Replacement

REMOVAL PROCEDURE

IMPORTANT: If you must remove more than one tube adapter at one time, stamp the Brake Pressure Modulator Valve (BPMV) with a number (1, 2 or 3) in order to indicate the number of grooves cut into the tube adapters. This procedure will aid proper reassembly.

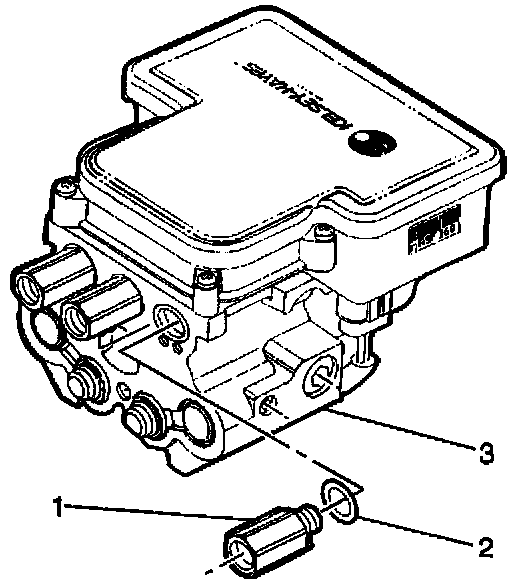

1. Remove the appropriate brake line from the tube adapter (1).
2. Remove the tube adapter from the BPMV (3).

INSTALLATION PROCEDURE

NOTICE: Refer to Fastener Notice in Service Precautions.

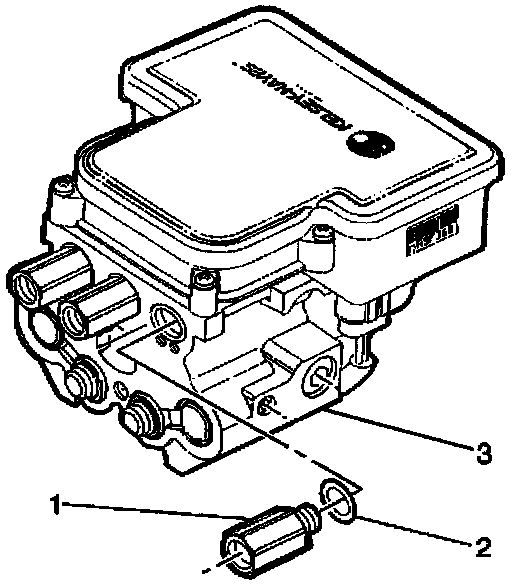

1. Install the new tube adapter (1) into the BPMV (3).
^ Tighten the tube adapter to 31 Nm (23 ft. lbs.).

2. Install the brake line.
^ Tighten the brake line to 29 Nm (22 ft. lbs.).

3. Bleed the system. Refer to ABS Bleed Procedure.
