Chevy Truck
>>
1998
>>
S10/T10 Blazer 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Center Mounted Brake Lamp
>>
W/Liftgate
W/Liftgate

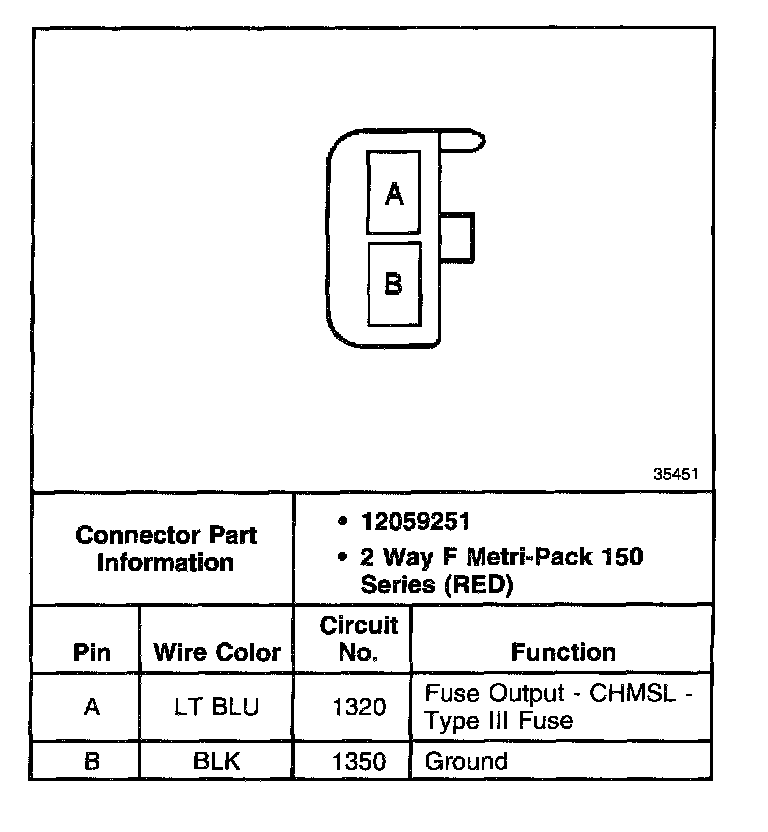

High Mount Stop Lamp Connector (Utility W/Liftgate):
