Home
>>
Chevy Truck
>>
1998
>>
K Tahoe 4WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

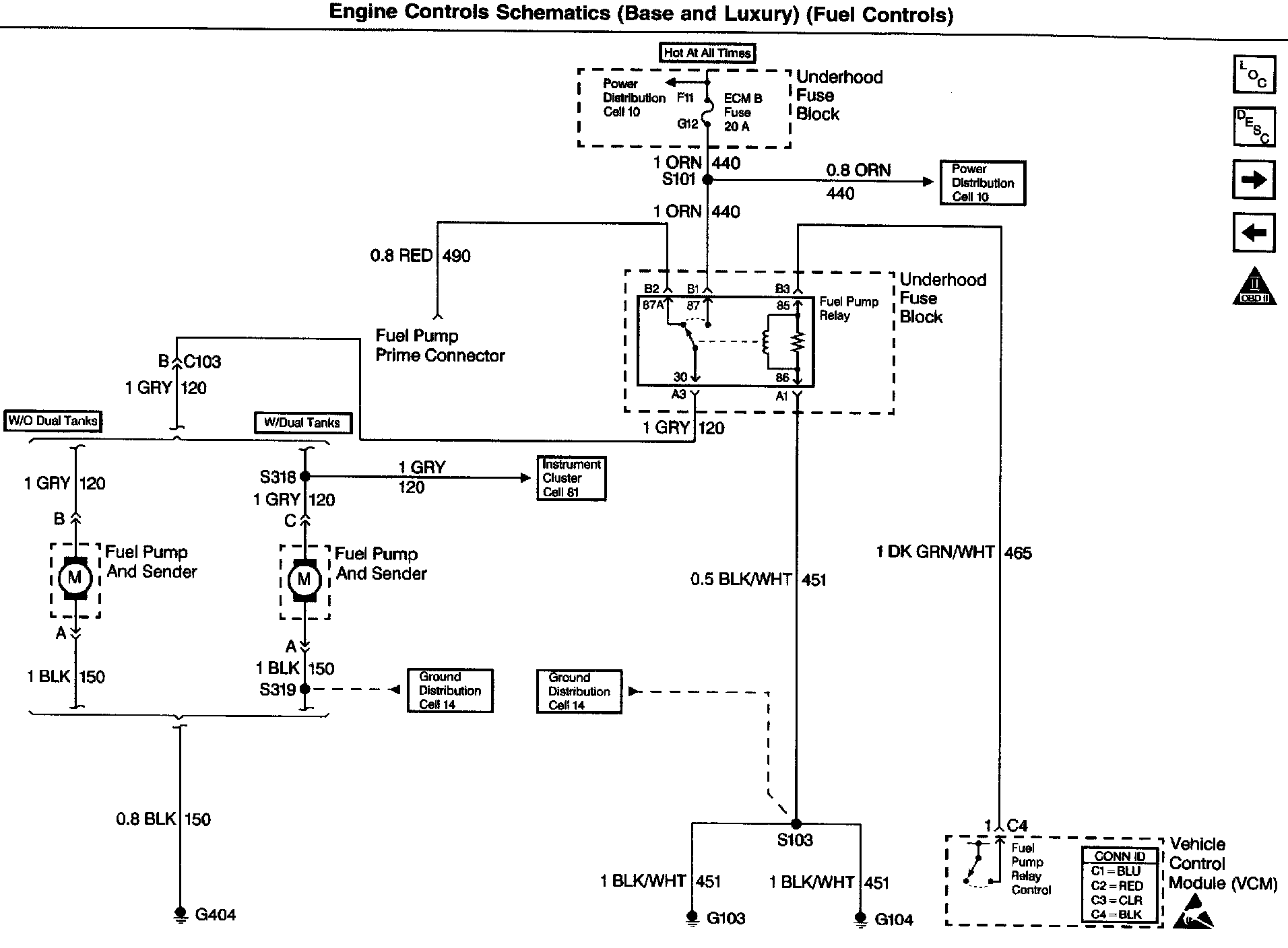

Instrument Cluster (Including Balance Module/Pump)
Instrument Cluster (Including Balance Module/Pump)
