Home
>>
Chevy Truck
>>
1998
>>
K Tahoe 4WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
With Base and Luxury Models
With Base and Luxury Models
FUEL CONTROLS

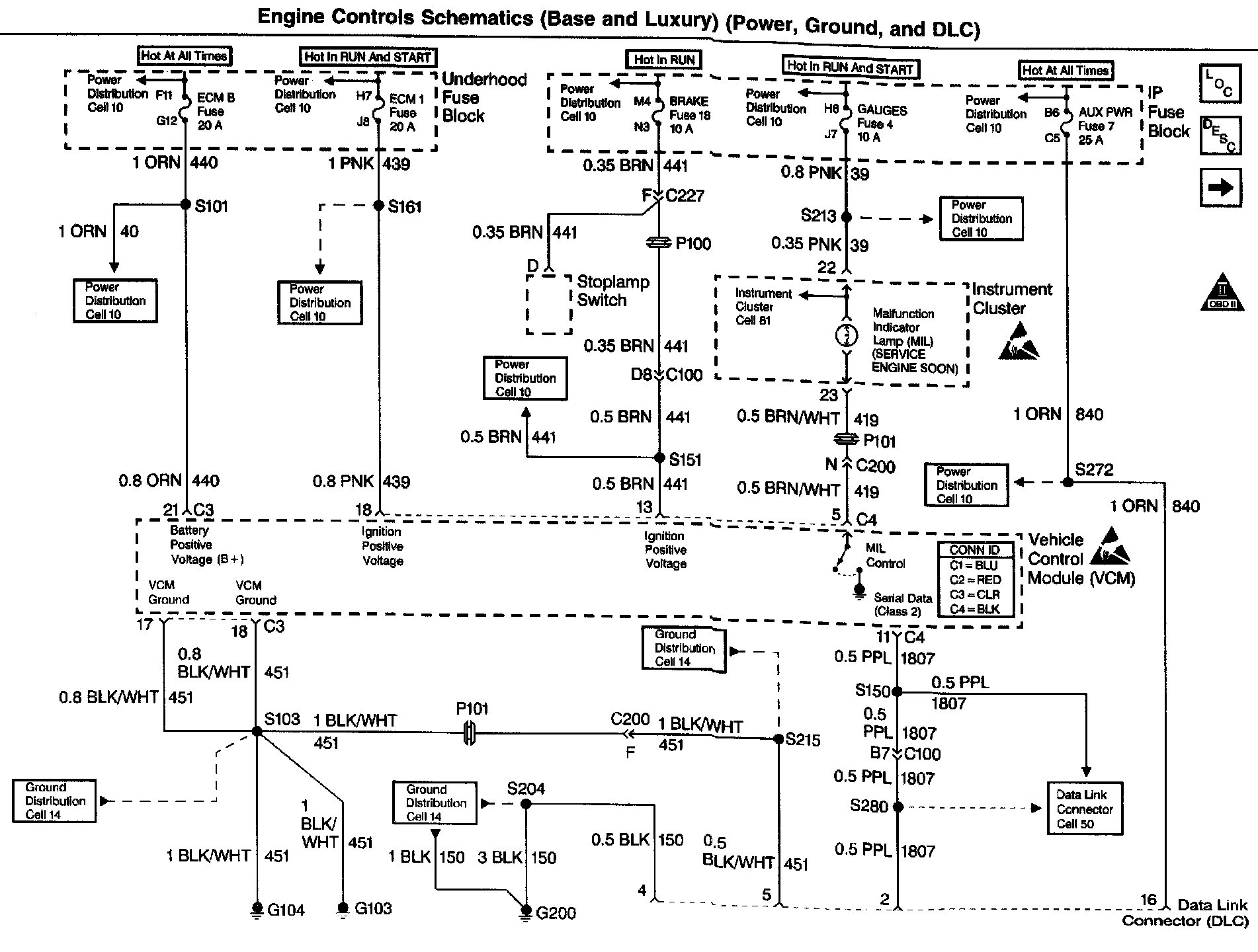

POWER, GROUND and
DLC

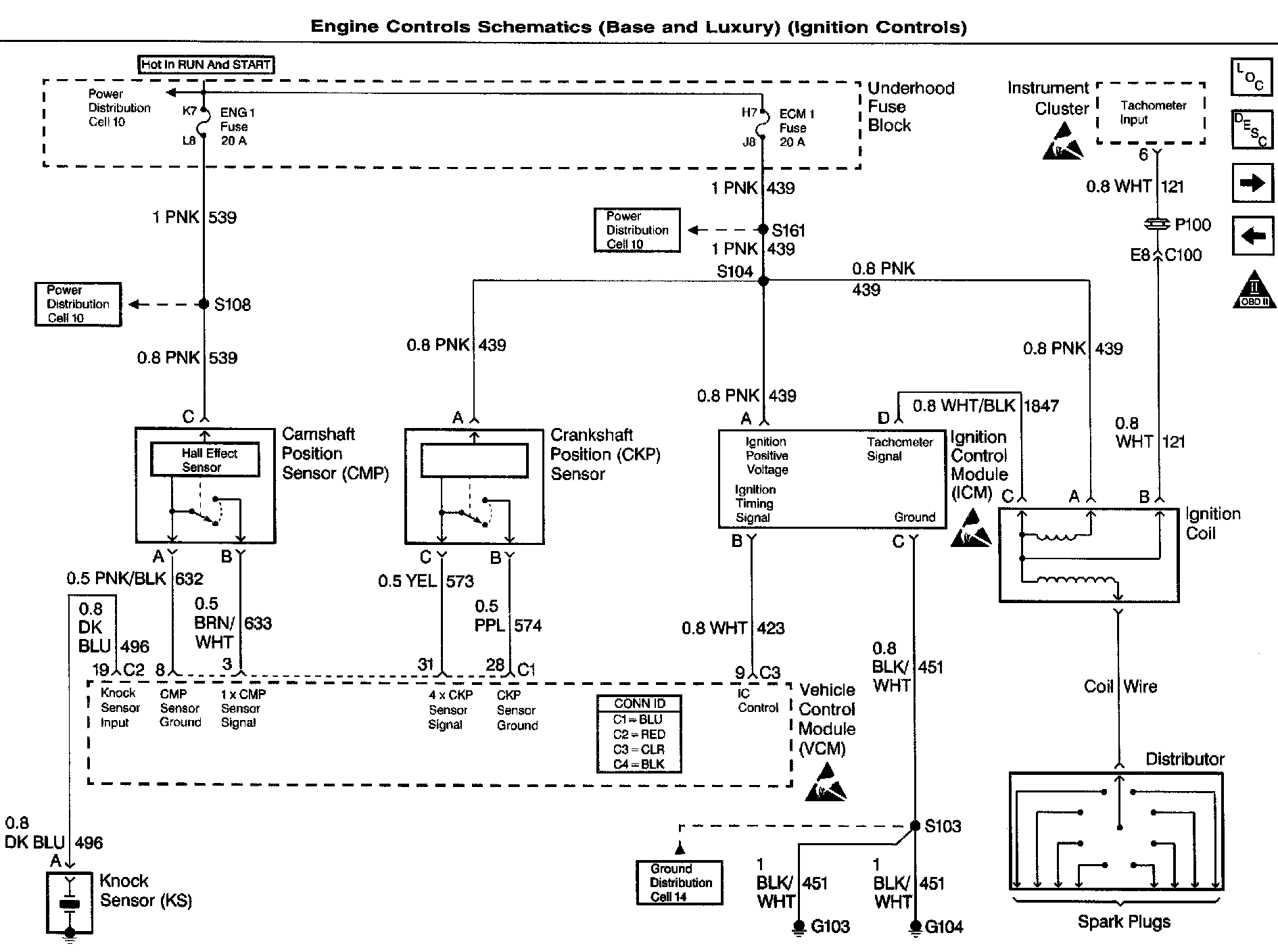

IGNITION CONTROLS
