4 Door

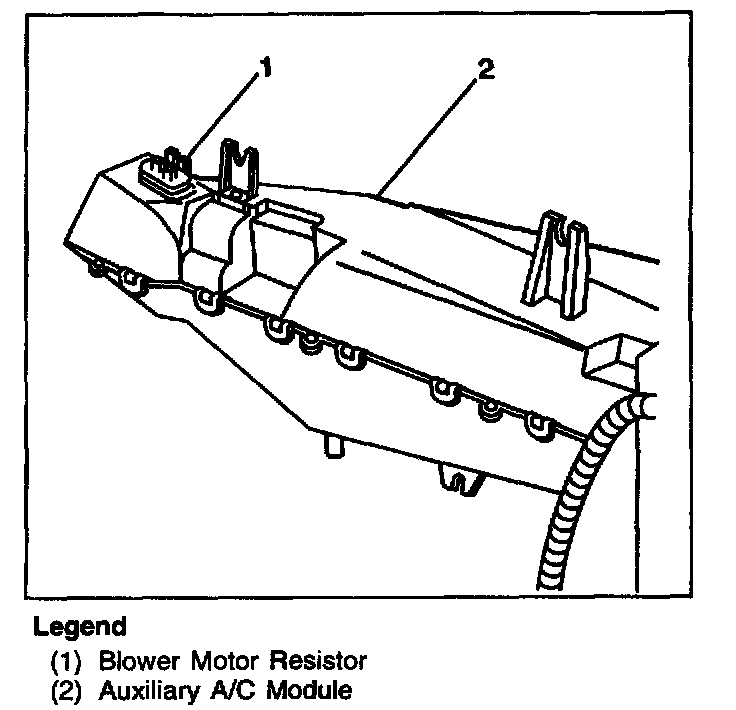

Blower Motor Resistor:

Remove or Disconnect

1. Negative battery cable.
2. Right rear quarter trim panel.
3. Electrical connectors, as necessary.
4. Blower motor resistor screws.
5. Blower motor resistor.

Install or Connect

1. Blower motor resistor.
2. Blower motor screws.

Tighten
Screws to 1.4 N.m (12 lb in).

3. Electrical connectors, as necessary.
4. Right rear quarter trim panel.
5. Negative battery cable.
- Check circuit operation.
