Chevy Truck
>>
1998
>>
K 2500 Suburban 4WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>

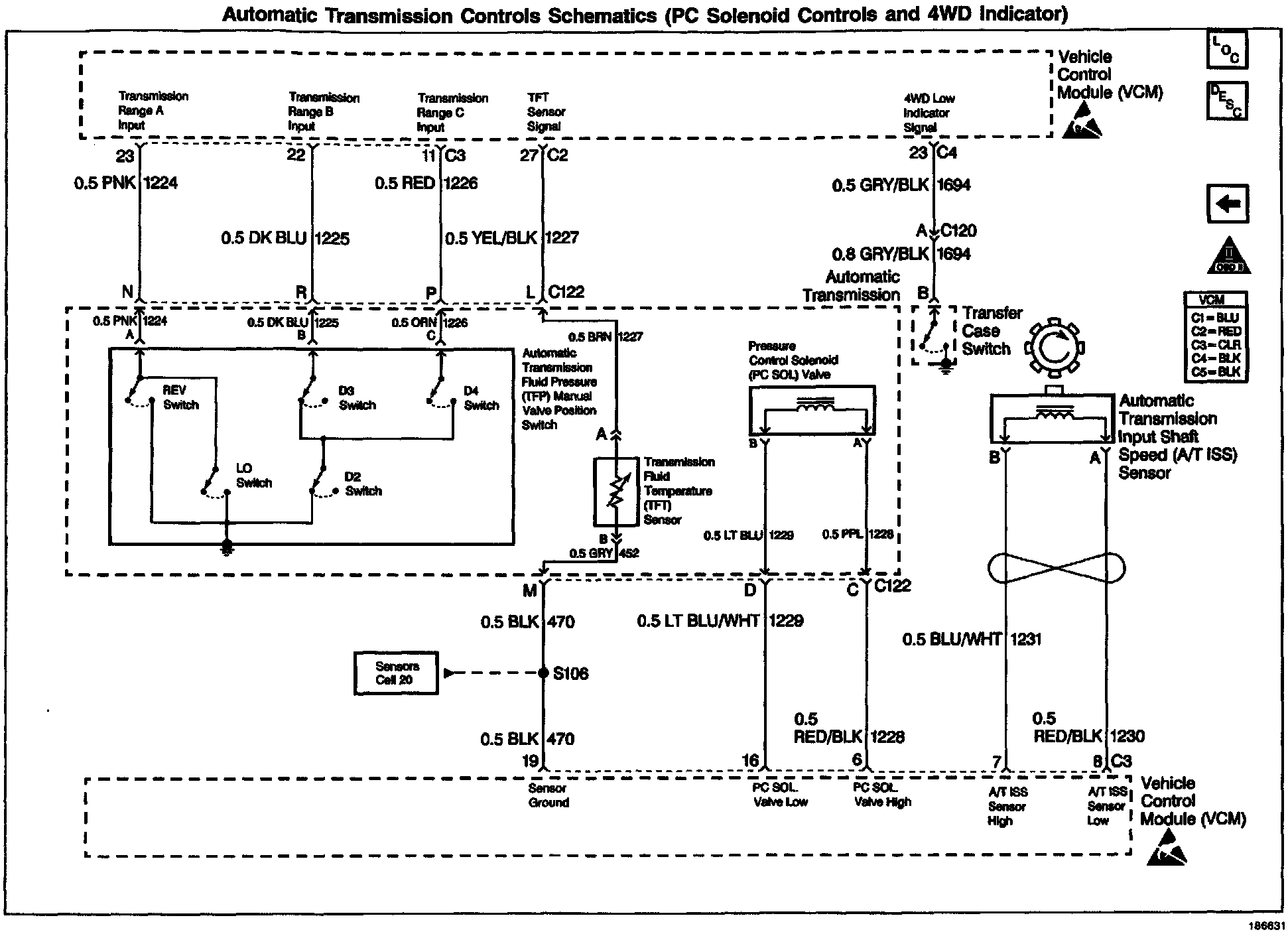

PC Solenoid and 4WD Indicator
PC Solenoid and 4WD Indicator
Wiring Diagram:
