Home
>>
Chevy Truck
>>
1998
>>
K 2500 Suburban 4WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Switch and Shift Solenoids
Brake Switch and Shift Solenoids

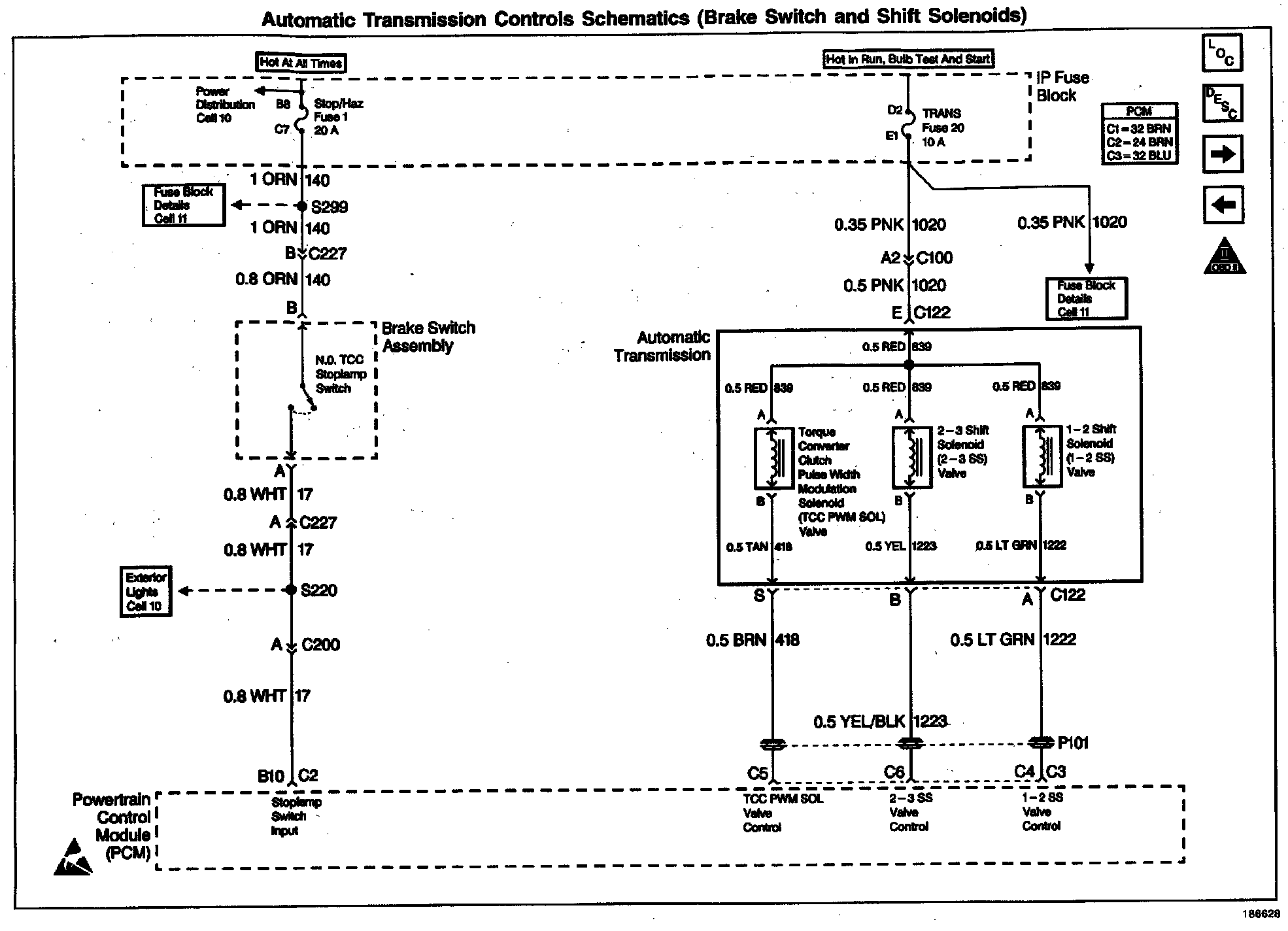

Wiring Diagram:
