Chevy Truck
>>
1998
>>
K 2500 Suburban 4WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transfer Case
>>
NVG 246-NP8 (2-Speed Automatic)
>>

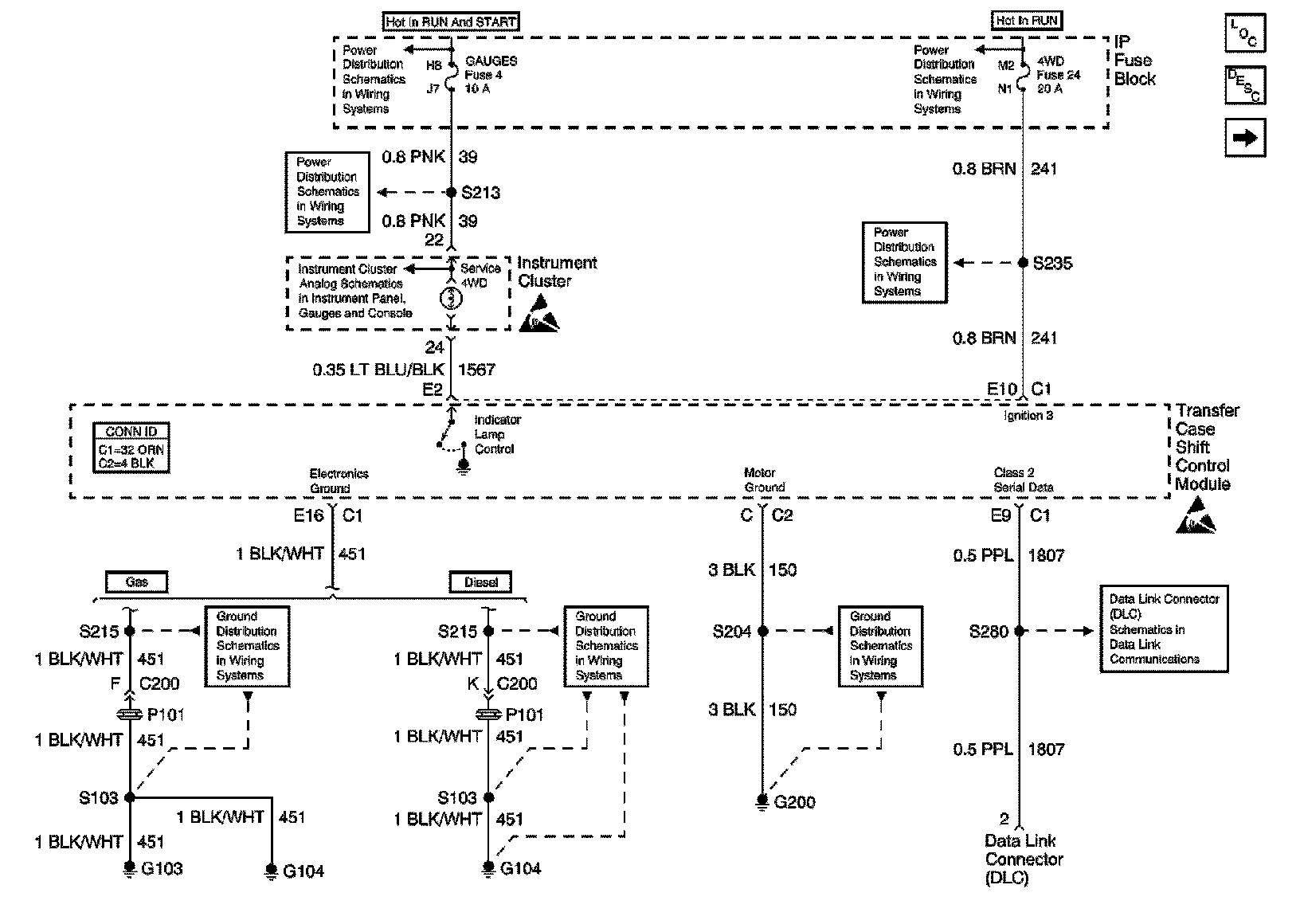

Shift Control Module Power, Ground, DLC and Service 4WD Indicator
Shift Control Module Power, Ground, DLC and Service 4WD Indicator
