Tailgate Release Handle: Service and Repair

Removal Procedure

1. Lower the endgate.
2. Remove the trim panel.
3. Remove the latch assembly cover from the endgate.
4. Remove the two bolts and the washers from the back of the endgate behind the handle assembly.

Raise the endgate.

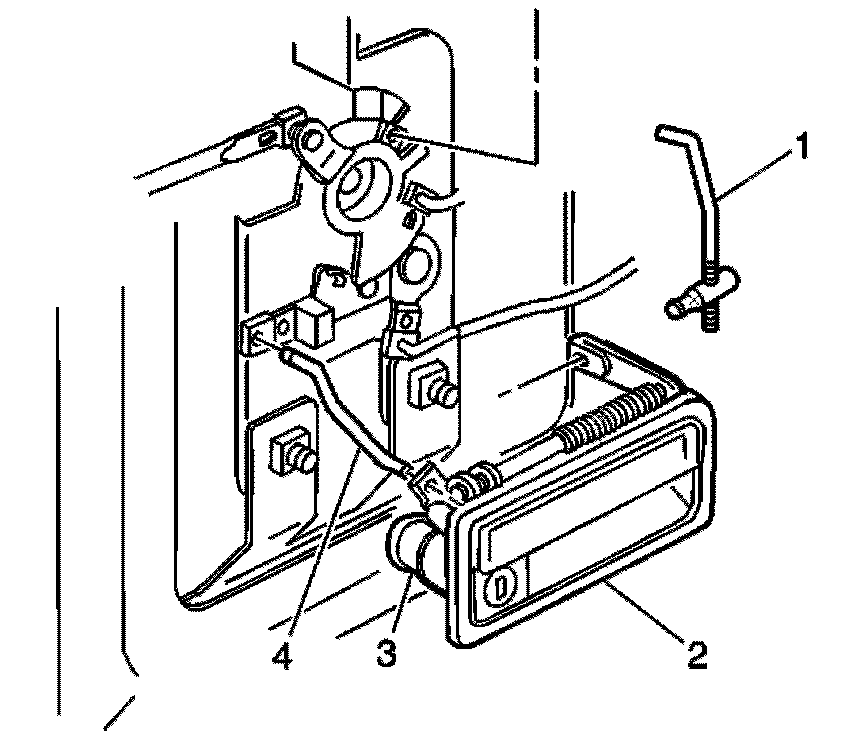

5. Remove the handle assembly (2) by prying gently.
6. Remove the latch operating rods (4) from the clips on the handle by pushing the rods back.
7. Remove the handle assembly from the endgate.

Installation Procedure






1. Install the handle assembly (2) into the endgate.
2. Install the latch operating rods (4) into the clips on the handle.

Lower the endgate.

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

3. Install the two bolts and the washers onto the handle assembly from the back of the endgate.

Tighten
Tighten the endgate to handle bolts to 4 Nm (35 lb in).

4. Install the latch assembly cover to the endgate.

The cover must be installed with both of the gates closed for proper alignment.

5. Install the endgate trim panel.
