Chevy Truck
>>
1998
>>
Express 1/2 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>
4L80-E Automatic Transmission
>>

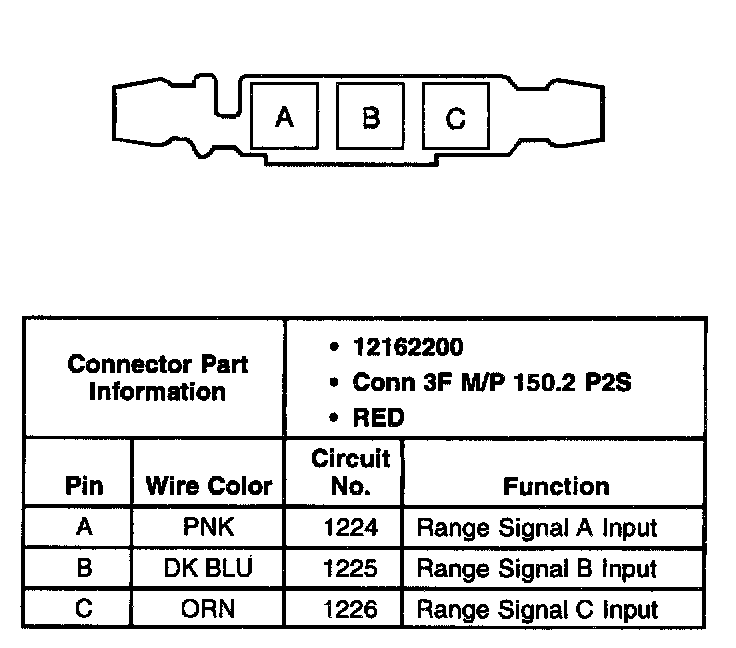

TFP Manual Valve Position Switch Connector, Wiring Harness Side
TFP Manual Valve Position Switch Connector, Wiring Harness Side
