Home
>>
Chevy Truck
>>
1998
>>
Express 1/2 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Controls
>>
With 4L60-E Transmission
>>
Solenoid Controls

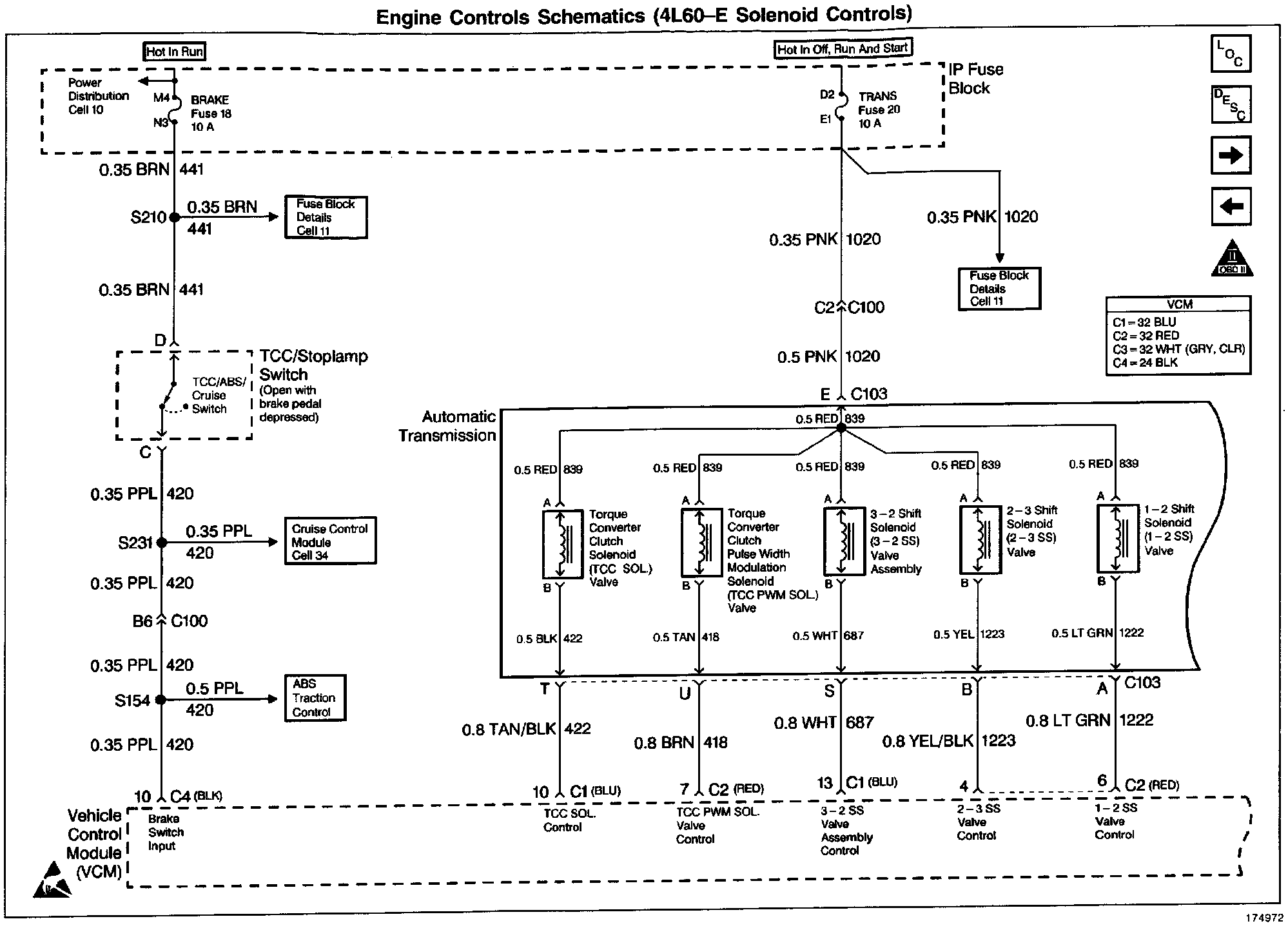

Solenoid Controls
Electrical:
