Evaporator Line

Auxiliary Evaporator Line:

Remove or Disconnect

1. Recover the refrigerant to the system.
2. The engine cover.
3. The auxiliary evaporator line from the condenser and compressor hose.
4. Raise the vehicle and support it with suitable safety stands.
5. The auxiliary evaporator line connection from the underside of the body.

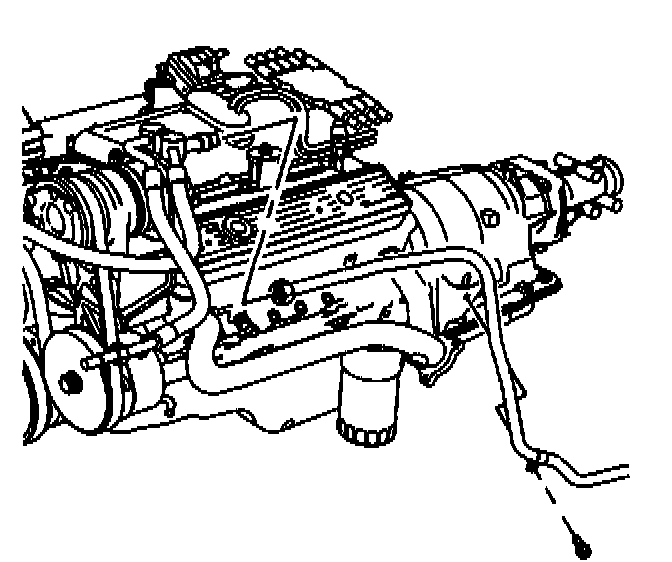

6. The evaporator line retaining bolts from the engine and body.
7. The evaporator line from the vehicle.

Install or Connect

1. The evaporator line to the vehicle.
2. The evaporator line retaining bolts to the engine and body.
3. The auxiliary evaporator line connection to the underside of the body.
4. Lower the vehicle.
5. The auxiliary evaporator line to the condenser and compressor hose.
6. The engine cover.
7. Recharge the refrigerant to the system.
