Home
>>
Chevy Truck
>>
1998
>>
Express 1/2 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

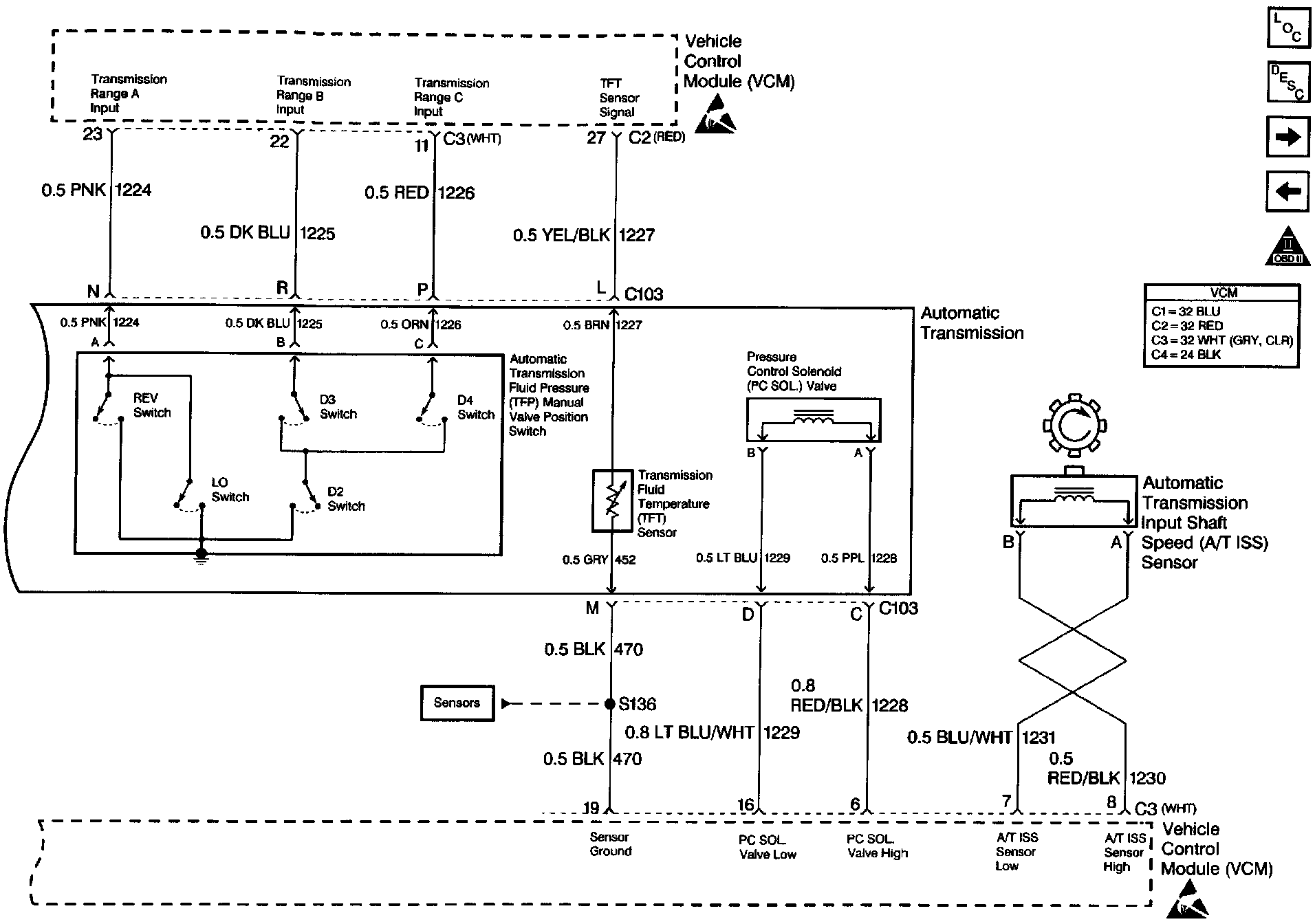

Transmission Controls
>>
With 4L80-E Transmission
>>
Switch Controls
Switch Controls
Electrical:
