Home
>>
Chevy Truck
>>
1998
>>
Express 1/2 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C200-C299
>>
C206
C206

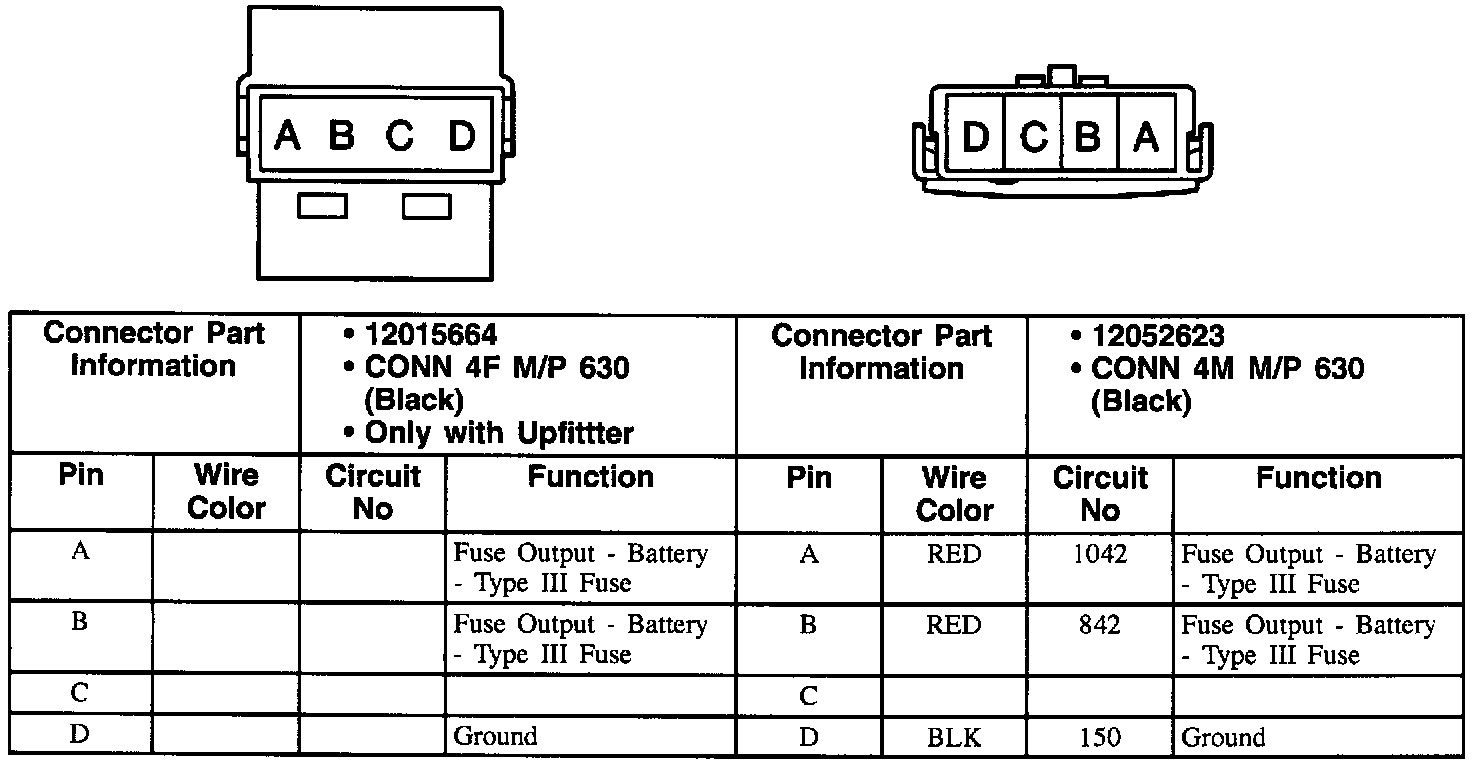

In-Line Connector C206 (Upfitter Provisions):
