Home
>>
Chevy Truck
>>
1998
>>
Express 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G401
G401

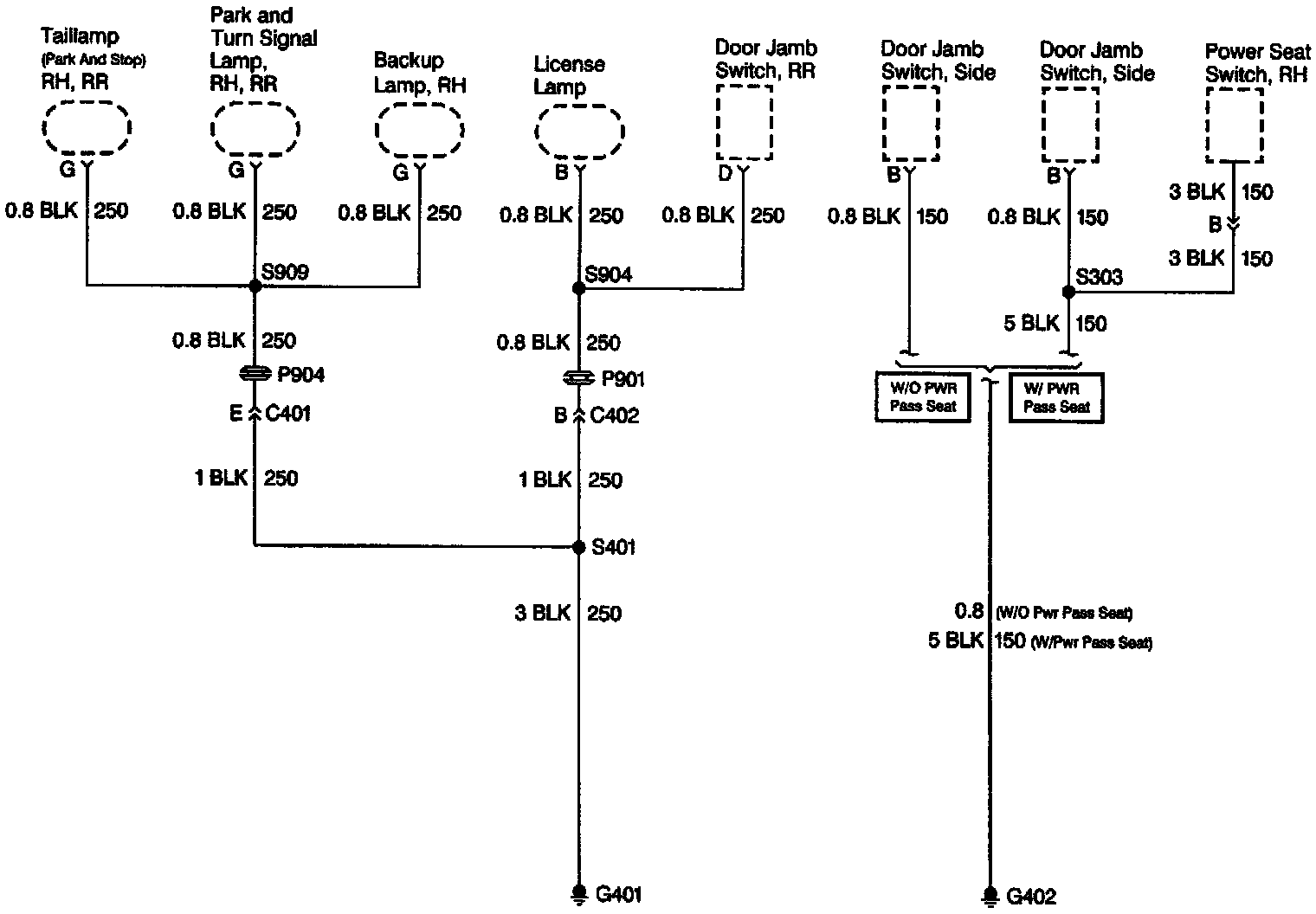

Ground Distribution (Part 3 Of 3):
