Home
>>
Chevy Truck
>>
1998
>>
Express 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>

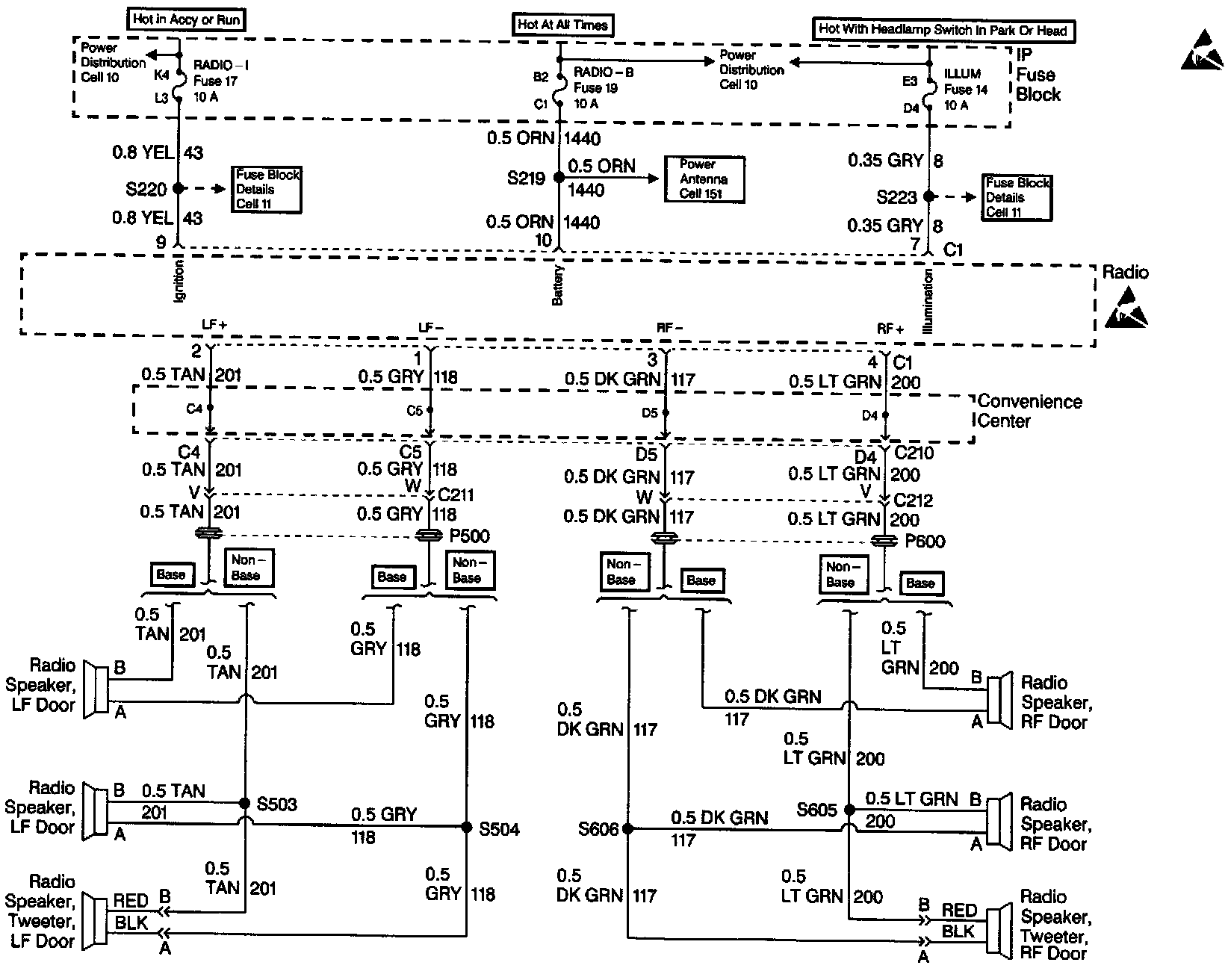

System Diagram
>>
General
General
Radio/Audio Systems:
Radio/Audio Systems:
