Chevy Truck
>>
1998
>>
Express 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

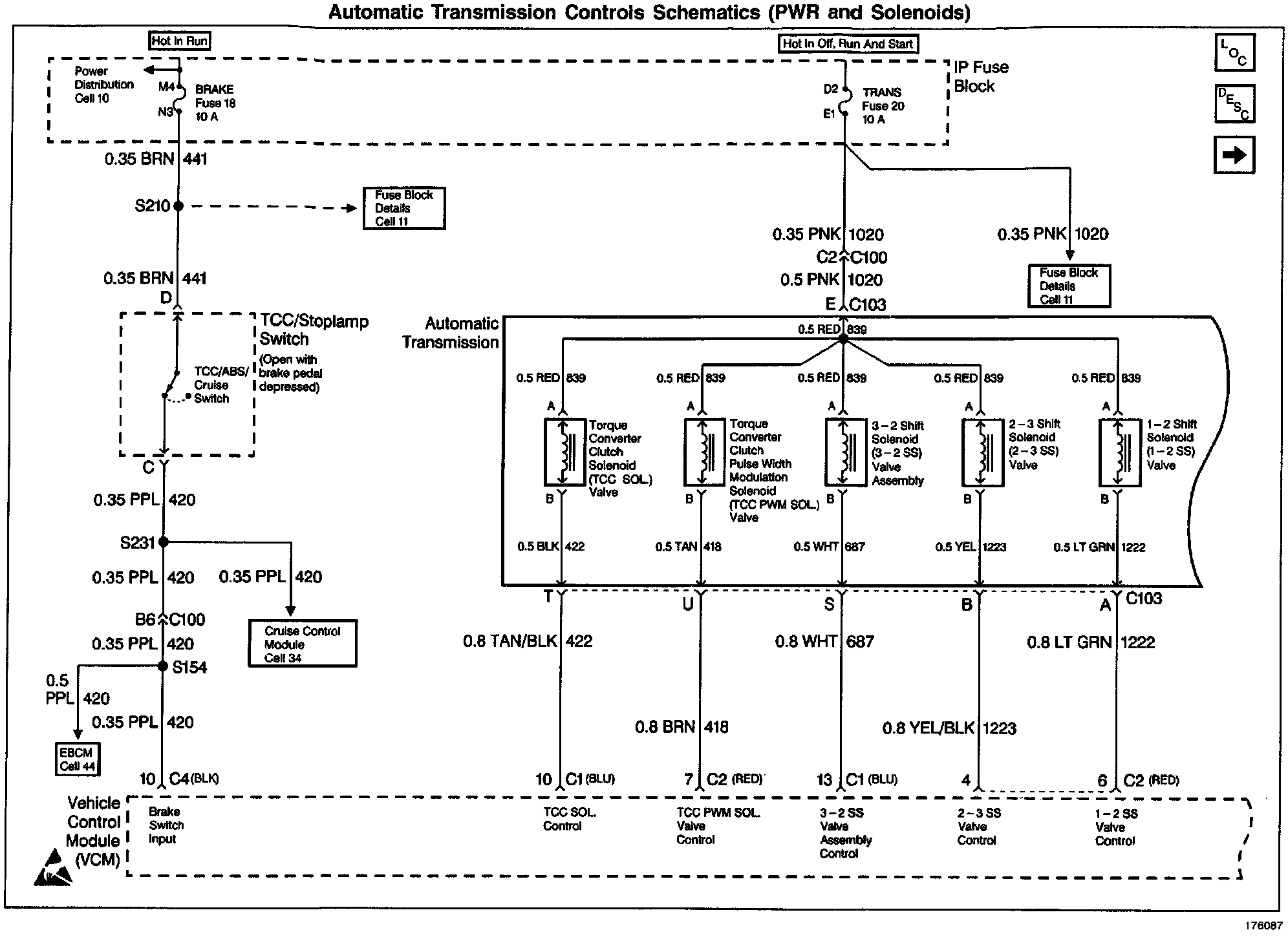

Transmission Controls
>>
PWR and Solenoids
PWR and Solenoids
Diagnostic Chart:
