Chevy Truck
>>
1998
>>
Express 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Shift Solenoid, A/T
>>
3-2 Shift Solenoid (3-2 SS) Valve Assembly Connector
3-2 Shift Solenoid (3-2 SS) Valve Assembly Connector

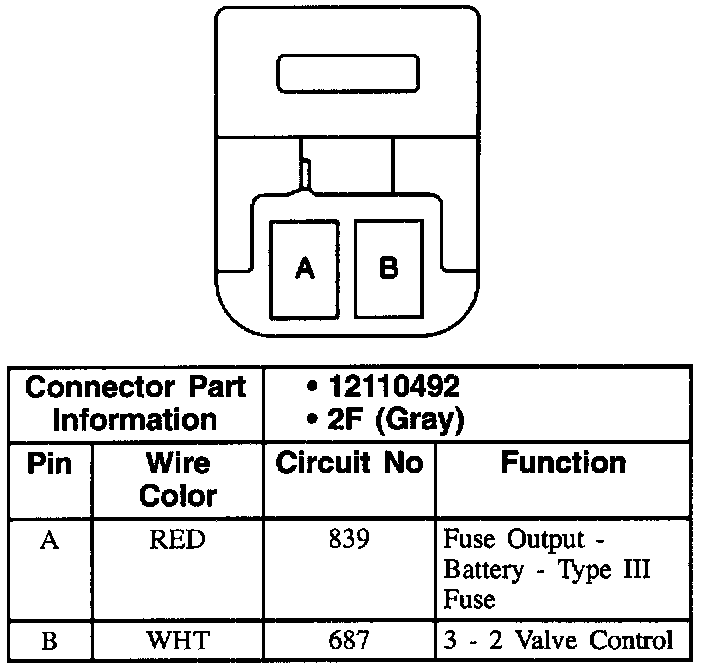

3-2 Shift Solenoid (3-2 SS) Valve Assembly Connector:
