Chevy Truck
>>
1998
>>
Express 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blower Motor Relay
>>

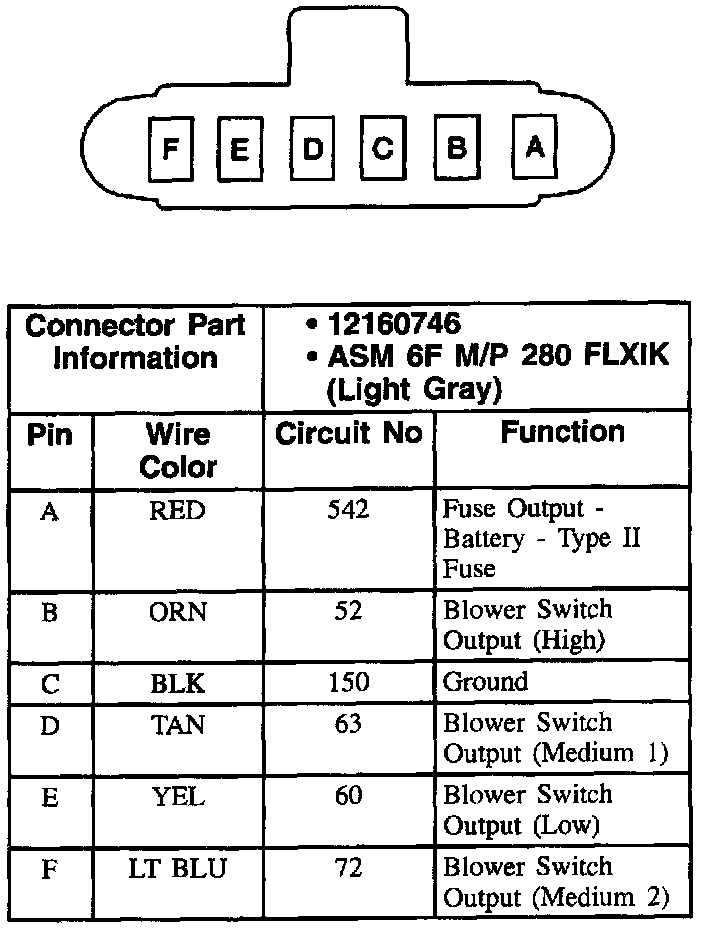

Blower Motor Resistor/Relay Connector
Blower Motor Resistor/Relay Connector
Blower Motor Resistor/Relay Connector:
