Express 1 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Solenoid, TCC and Stoplamp Controls
Solenoid, TCC and Stoplamp Controls

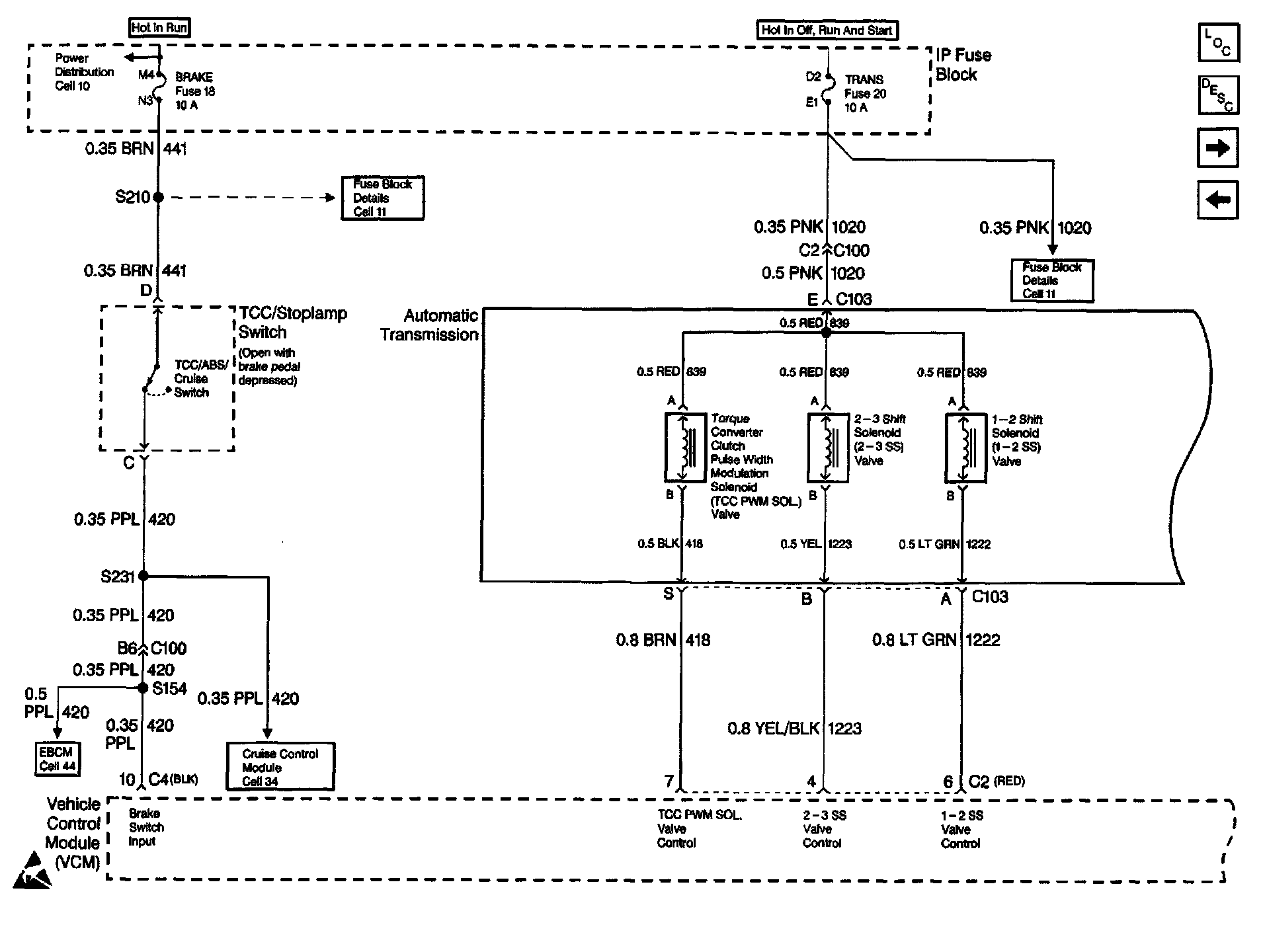

Wiring Diagram:
