Home
>>
Chevy Truck
>>
1998
>>
Express 1 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Resistor
Air Bag Resistor

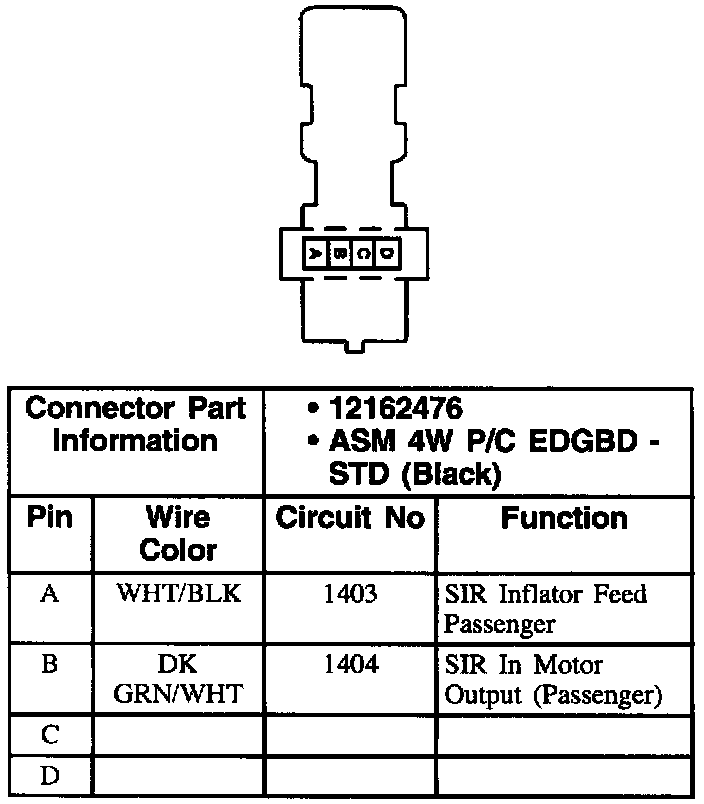

Inflatable Restraint Diagnostic Resistor Connector:
