EGR Filter: Service and Repair

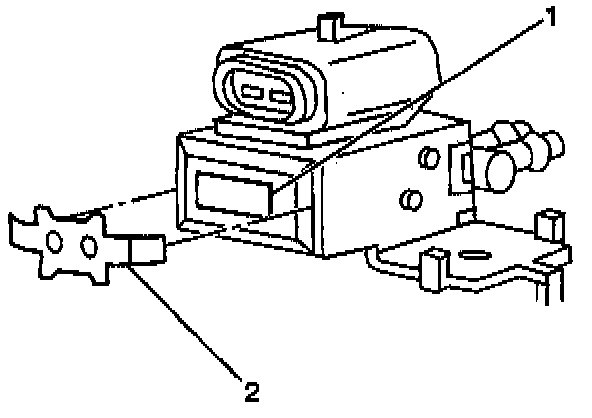

EGR Solenoid Filter Replacement:

Removal Procedure
1. Remove the filter retainer clip (2).
2. Remove the solenoid filter (1).

Installation Procedure
1. Install the solenoid filter (1).
2. Install the filter retainer clip (2).
