Chevy Truck
>>
1998
>>
C 1500 Suburban 2WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
>>
C3 (Clear)
>>
Pins 21-32
Pins 21-32

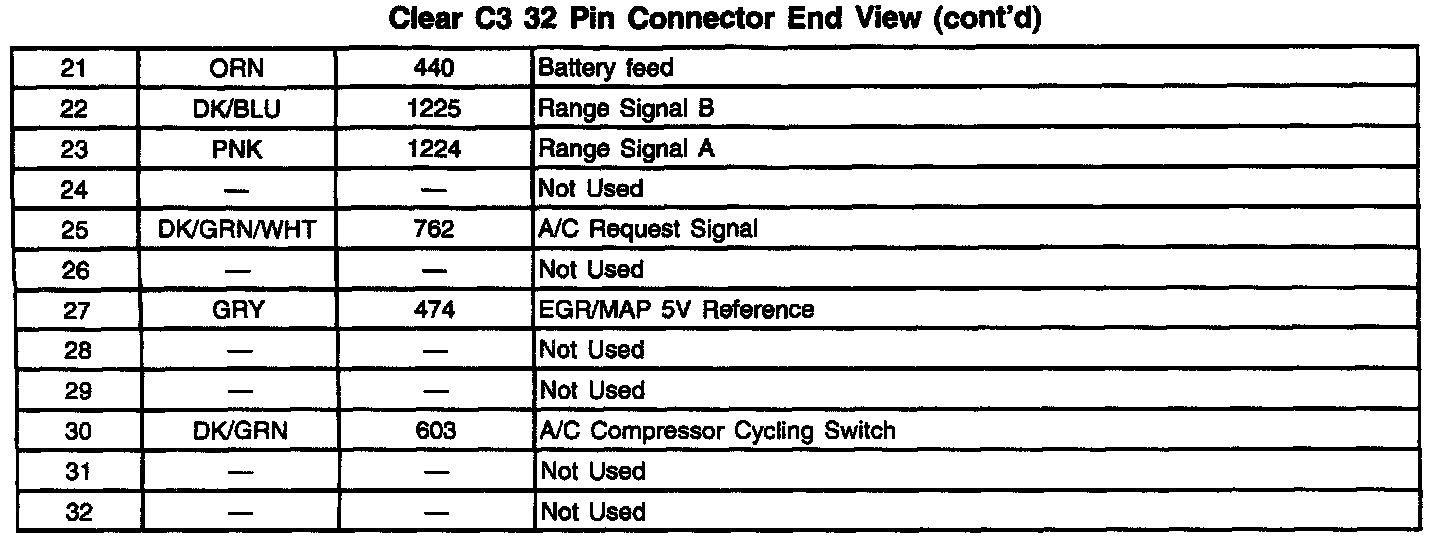

Connector View:
