Chevy Truck
>>
1998
>>
C 1500 Suburban 2WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
>>

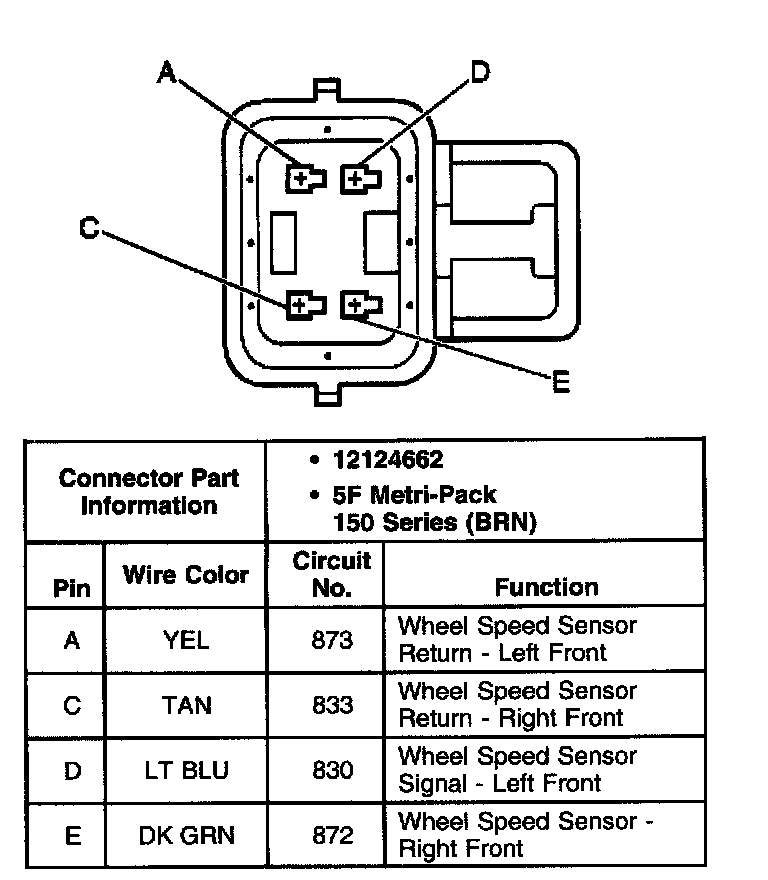

C2 Connector
C2 Connector
Connector C2:
