Home >> Chevy Truck >> 1998 >> C 1500 Suburban 2WD V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Auxiliary Heater and A/C Control Logic Module >> Front

Front

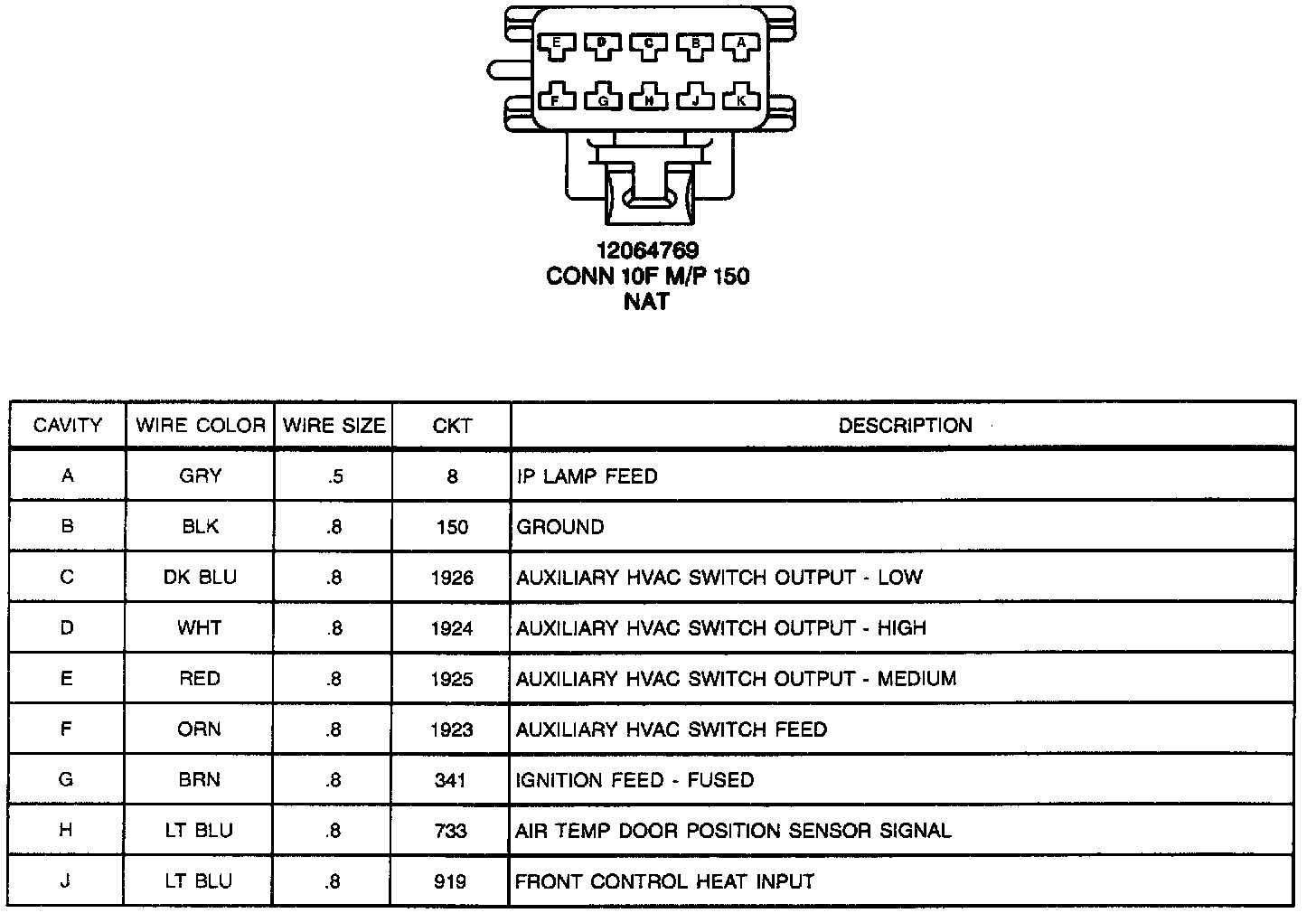

Auxiliary Heater And A/C Control Switch/Module (Front):
