Home >> Chevy Truck >> 1998 >> C 1500 Suburban 2WD V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Inflatable Restraint IP Module

Inflatable Restraint IP Module

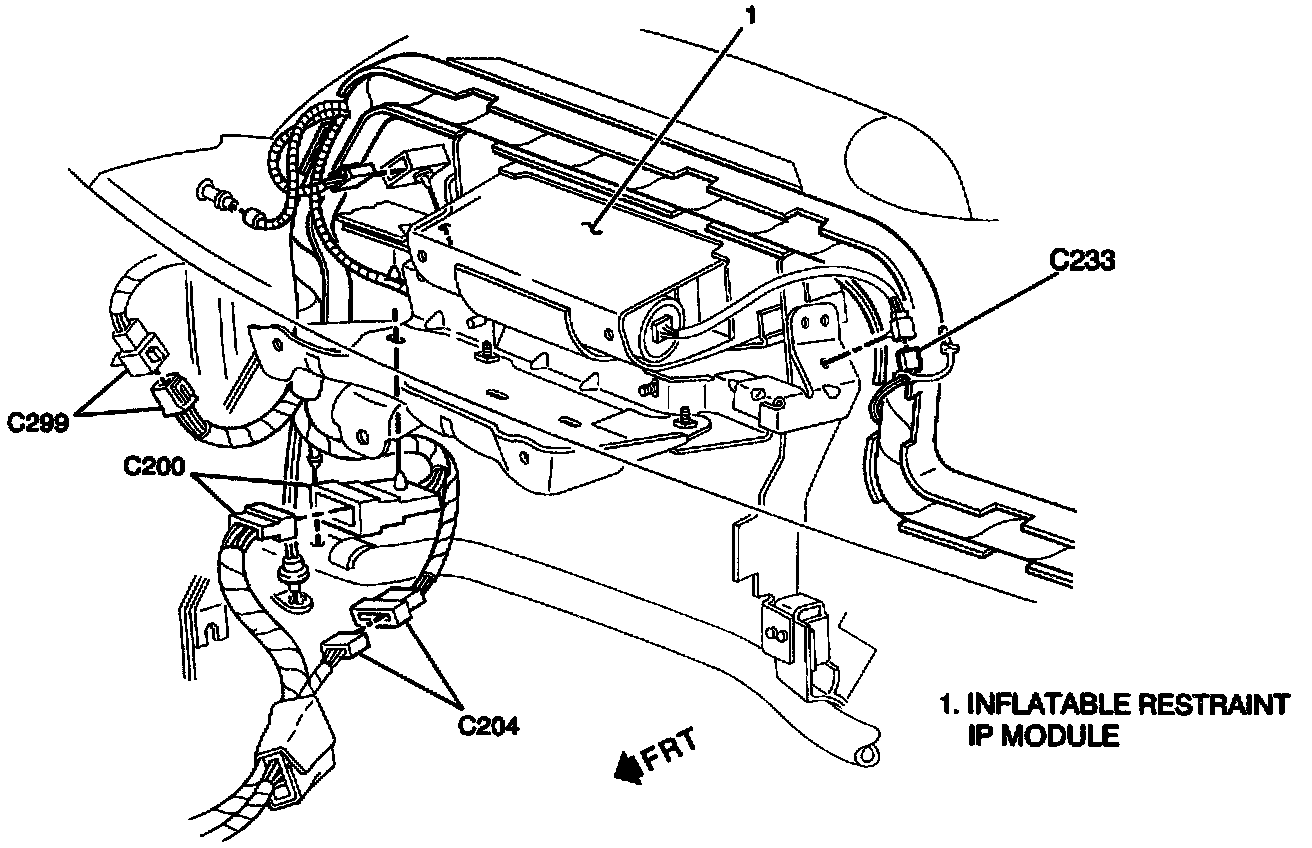

Instrument Panel Wiring, Inflatable Restraint IP Module, RH Side:



Description:
