Pulse Wiper System
Pulse Wiper System

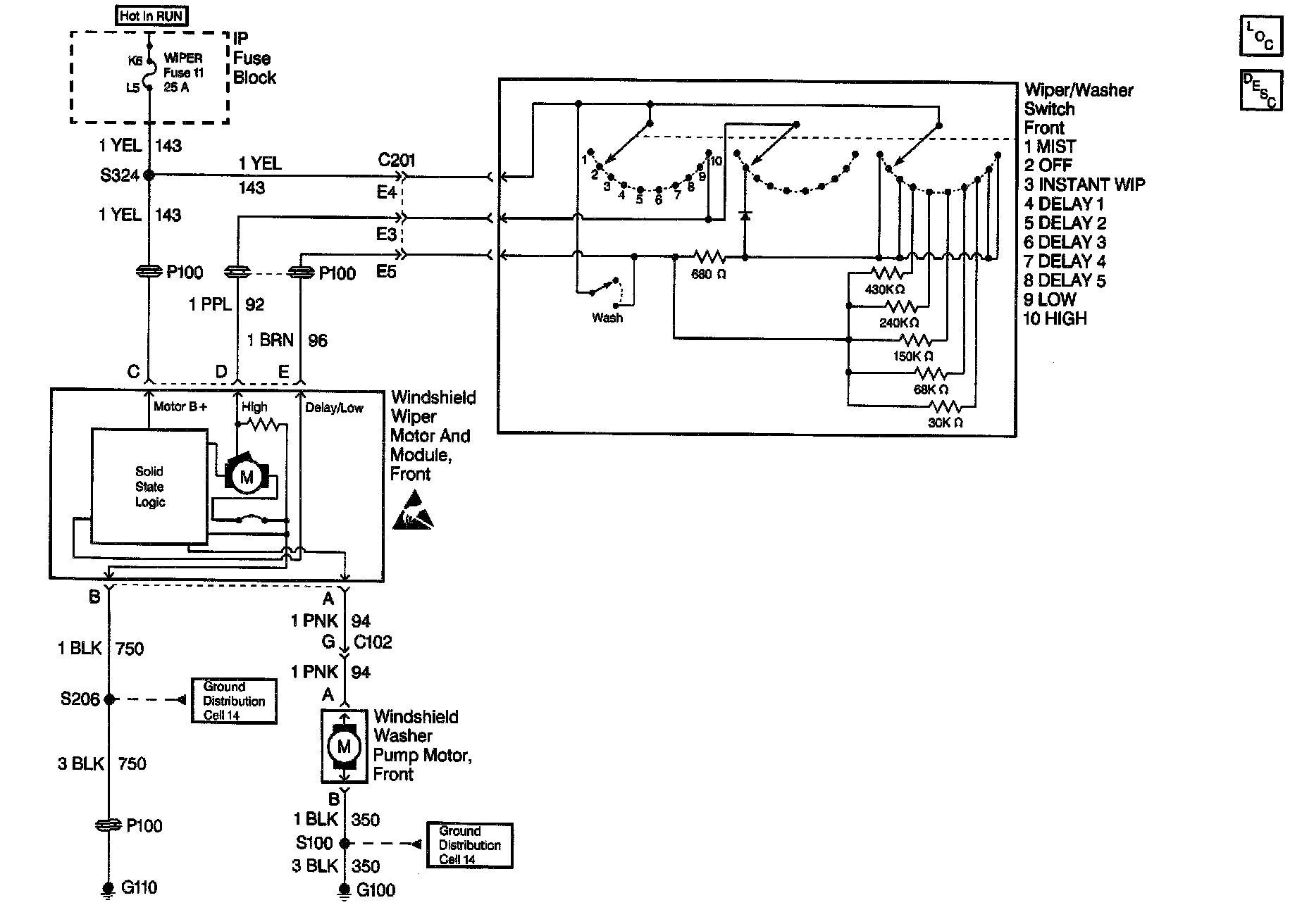

Wiper/washer System (Pulse) Schematics: Wiper/Washers - Pulse:
