Front Drive Axle

REMOVAL PROCEDURE

^ Tools Required
- J33782 Pinion Oil Seal Installer

IMPORTANT: Observe and accurately reference mark the positions of all driveline components relative to the propeller shaft prior to disassembly. These components include the propeller shafts, drive axles, pinion flange, inner axle shafts, etc. Reassemble all components in the exact relationship the components had to one another prior to disassembly. Follow the specifications, torque values and any measurement made prior to disassembly in order to maintain the factory system balance of the driveline components. System balance provides a smoother running driveline operation.

1. Remove the drive pinion flange. Refer to Pinion Flange Replacement.





2. Remove the pinion oil seal with a suitable seal removal tool. Do not damage the carrier.
3. Inspect the seal surface of the pinion flange for the following conditions:
^ Tool Marks
^ Nicks
^ Damage such as a groove worn by the seal

4. Inspect the carrier bore for burrs that might cause leak around the outside of the seal.

INSTALLATION PROCEDURE

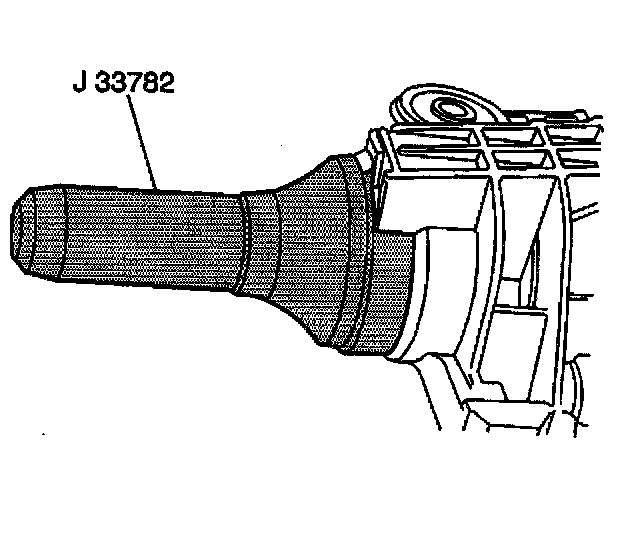

1. Install the new pinion oil seal using the J33782.
2. Install the drive pinion flange. Refer to Pinion Flange Replacement.
