Air Bag - New Removal/Installation Procedure

File In Section: 3 Steering/Suspension

Bulletin No.: 76-32-09

Date: February, 1998

Subject:
Section 2F Steering Wheel and Column On Vehicle Service New Removal/Installation Procedure for 1998 Next Generation Air Bag (RPO CTF)

Models:
1998 Chevrolet and GMC MIL Models

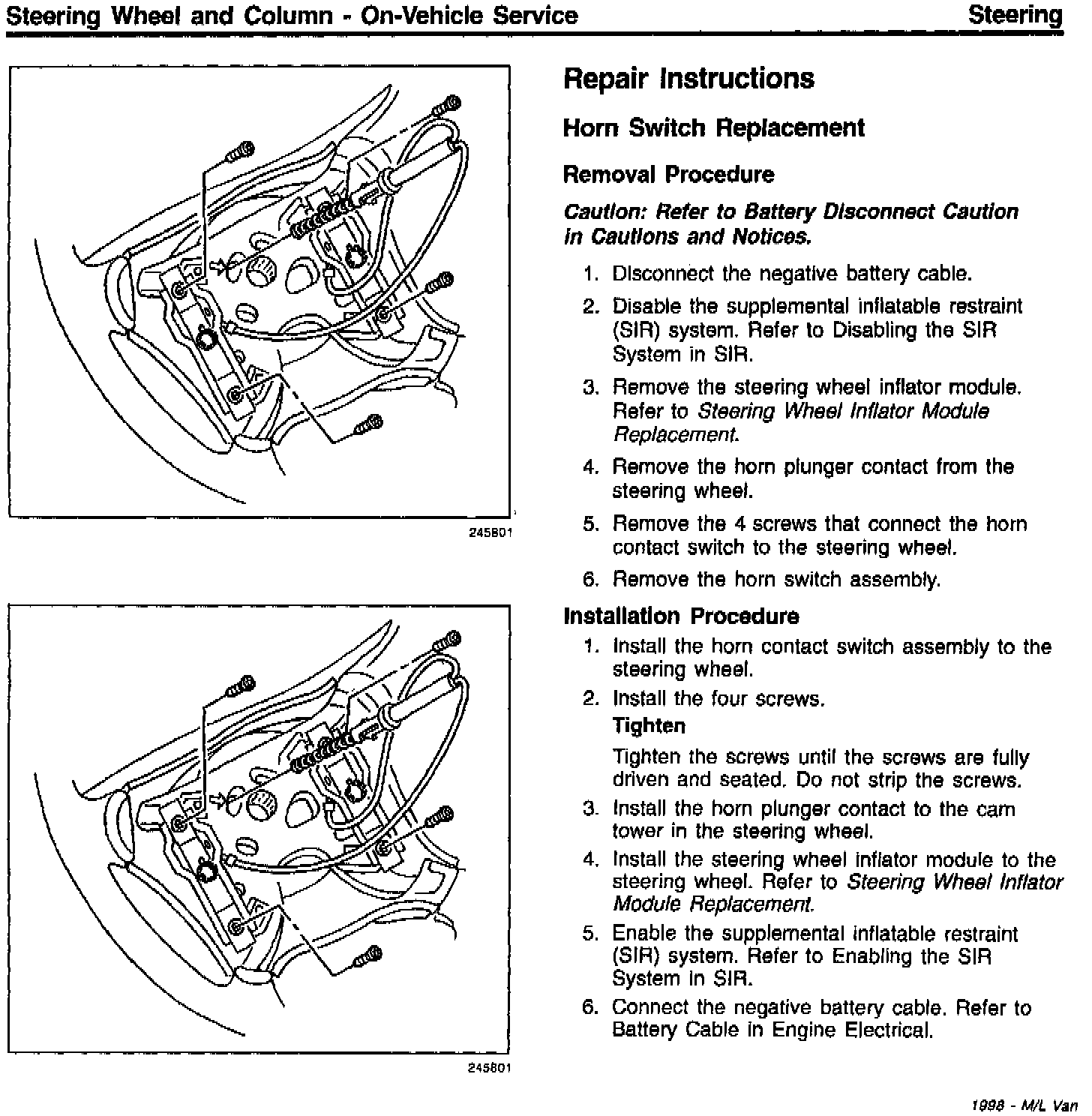

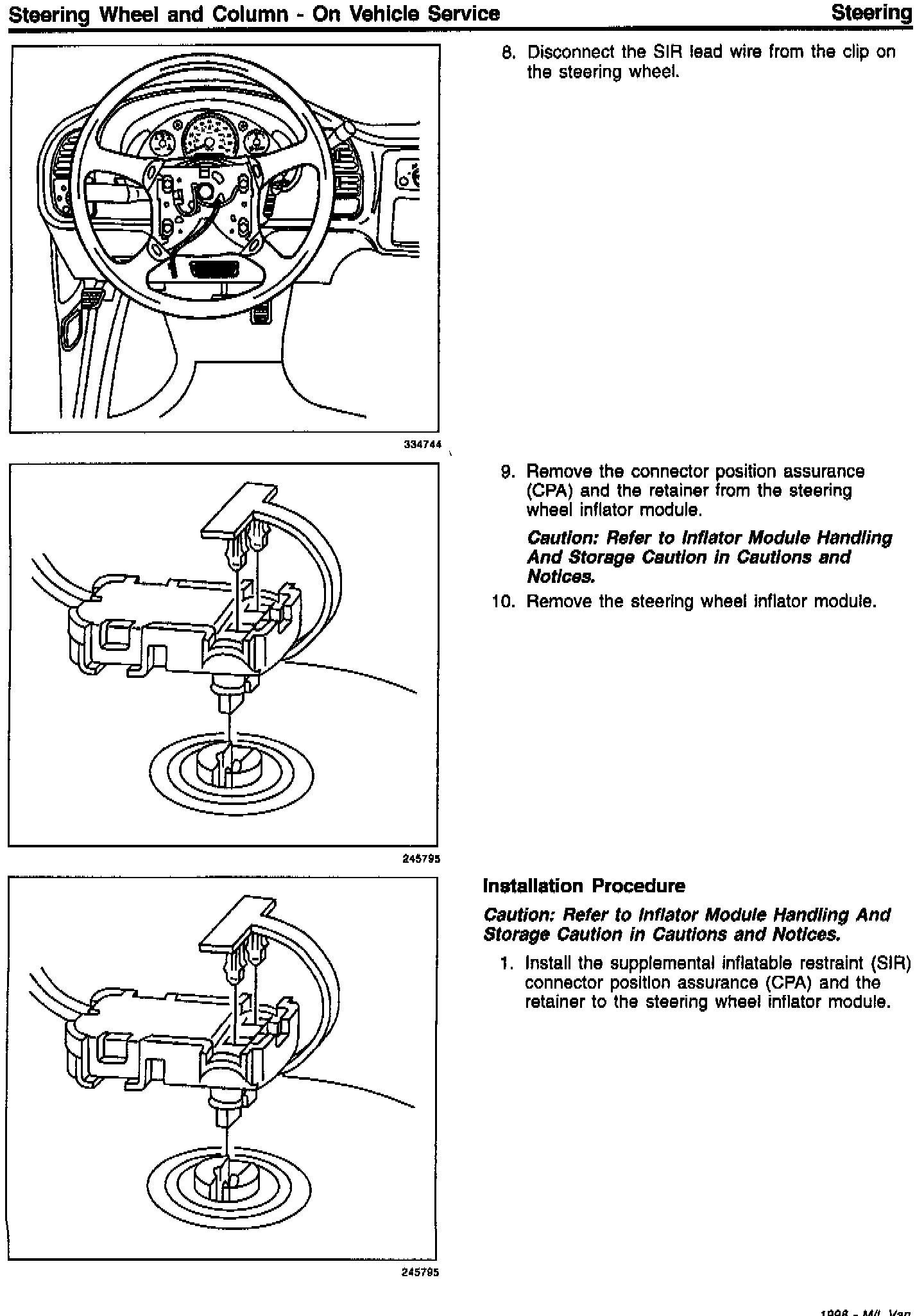

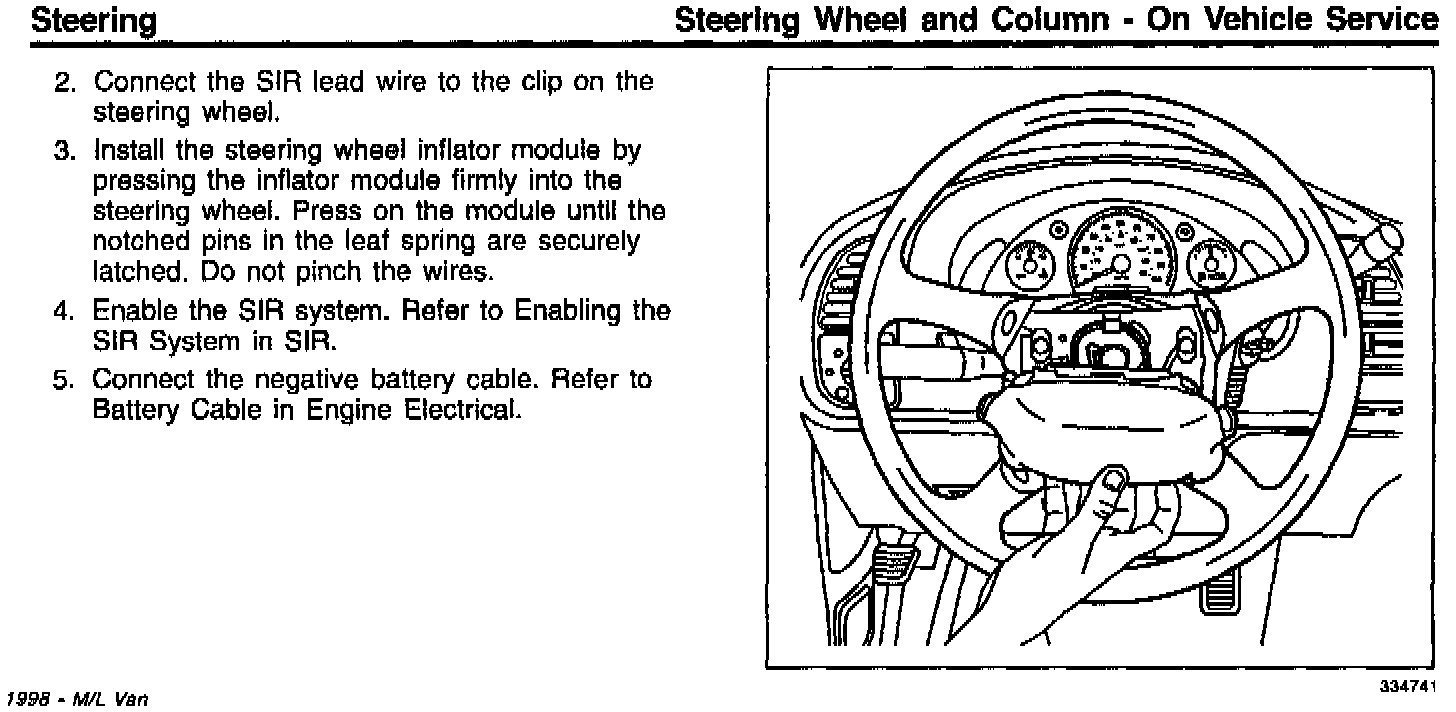

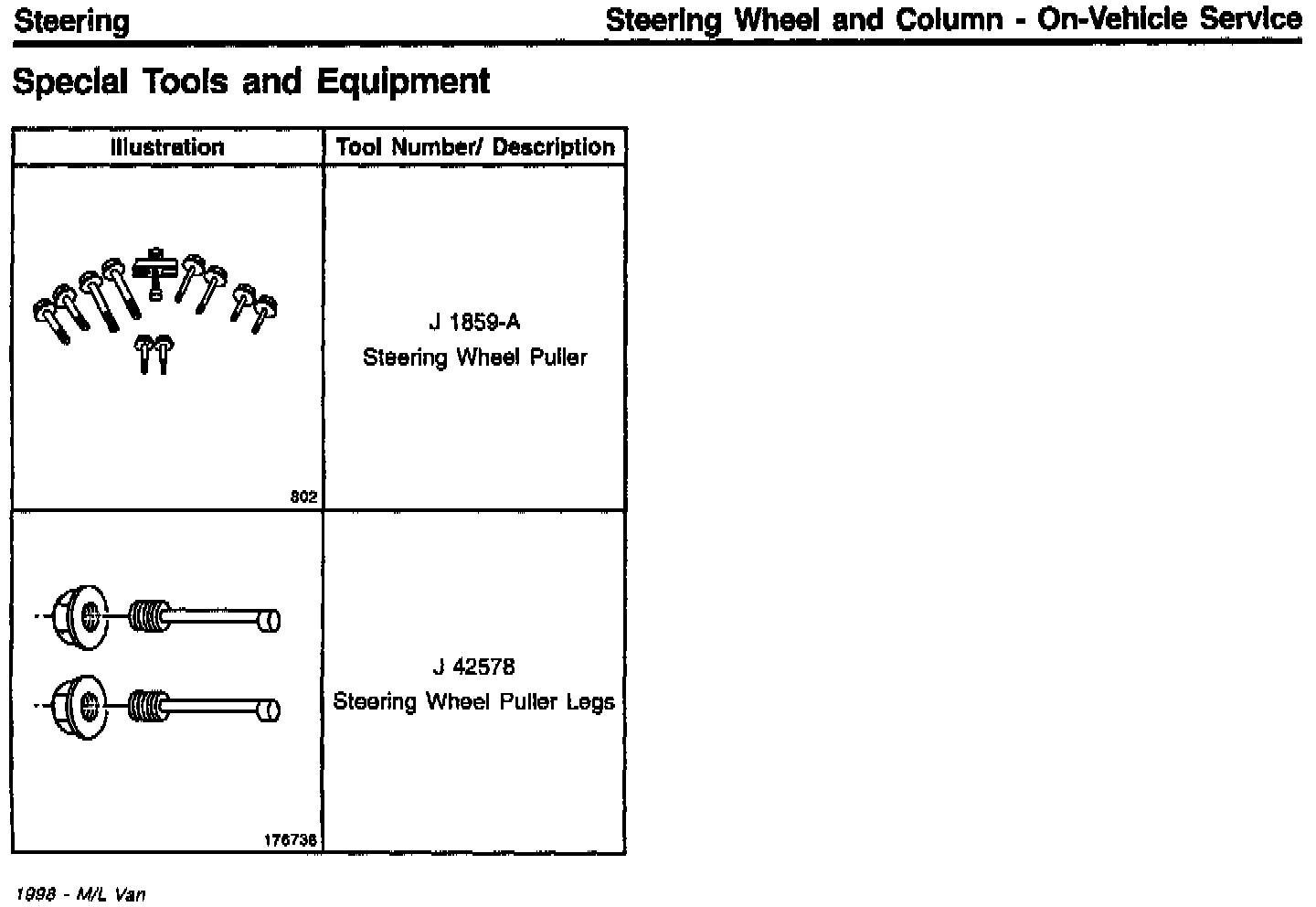

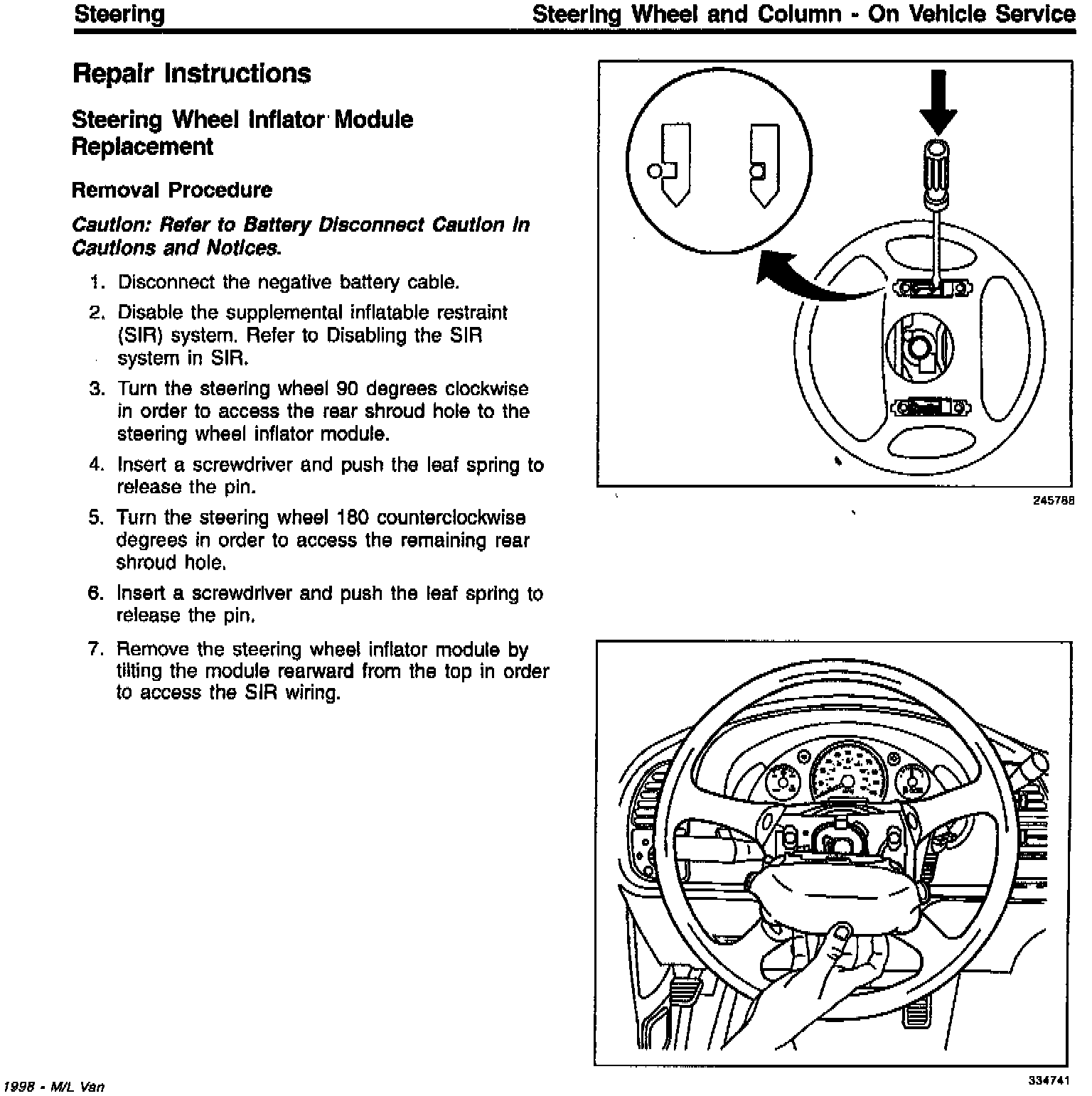

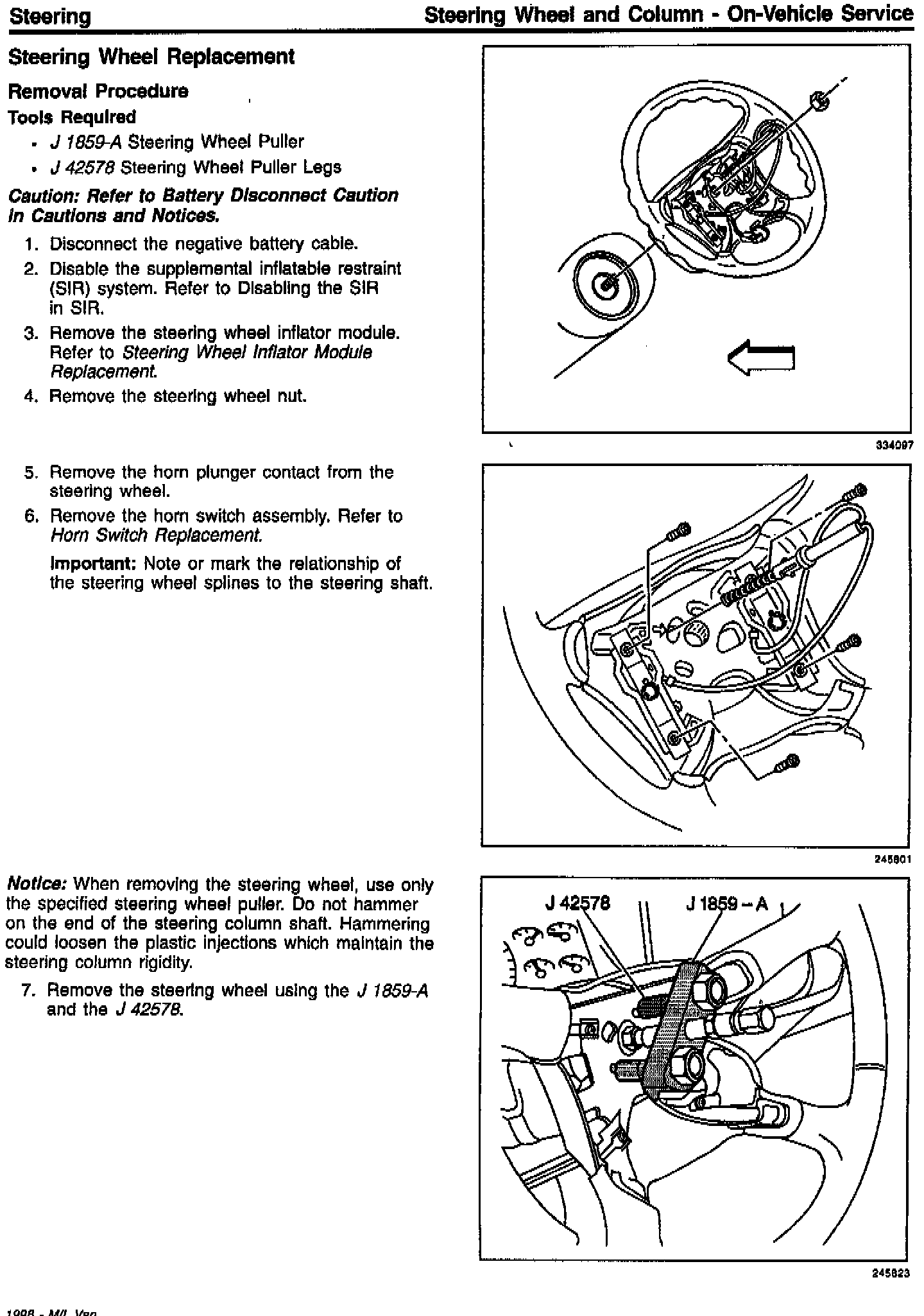

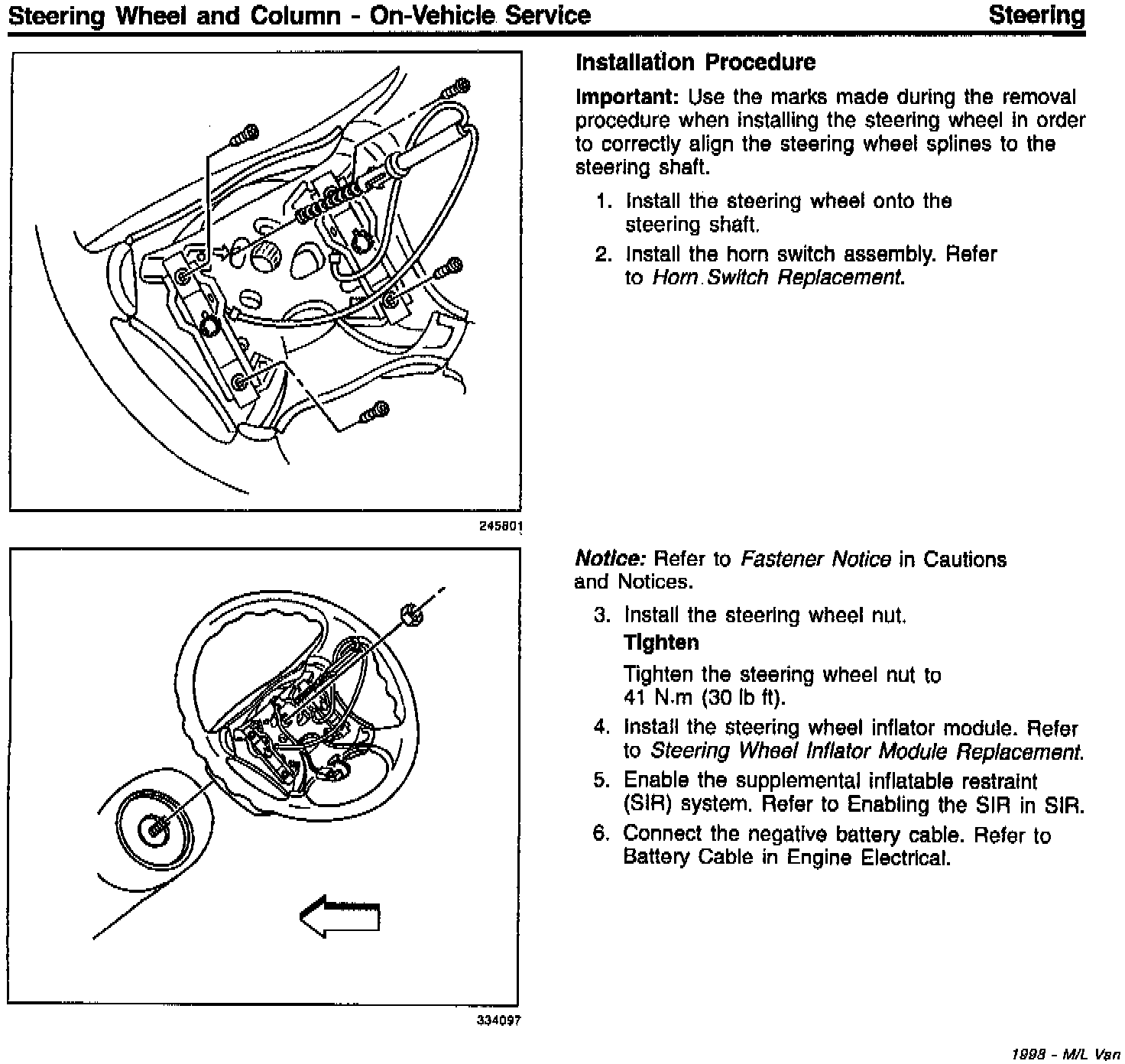

This bulletin is being issued to add the procedure for removal/installation of the steering wheel inflator module, the horn switch, and the steering wheel to Section 2F of the Service Manual.




jq:










��q:











Please add these pages to the Service Manual.
