Housing End Plug Replacement

Housing End Plug:

REMOVE OR DISCONNECT
- Steering gear from vehicle.

DISASSEMBLE

NOTE: Rotate stub shaft back and forth to drain fluid.

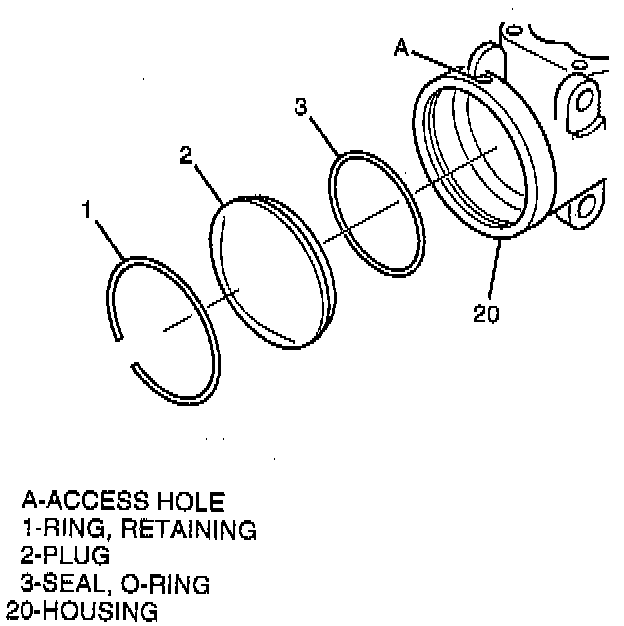

1. Retaining ring (1) by using a punch inserted into the housing access hole to unseat it.
2. Plug (2).
3. O-ring seal (3).

ASSEMBLE

NOTE: Lubricate O-ring seal with power steering fluid.

1. O-ring seal (3) into housing (20).
2. Plug (2).
3. Retaining Ring (1).
- Install retaining ring (1) so that open end is approximately 25 mm (1 inch) from access hole in housing (20).

INSTALL OR CONNECT
- Steering gear.
